The oil and gas industry generates significant amounts of wastewater from upstream and downstream activities which must be managed. Produced water and other wastewater sources need to be cleaned and treated before release into the environment as they can be highly polluted. ClearFox® has developed a range of modular solutions to treat produced water.


Fill out this field
Please enter a valid email address.
Fill out this field
Fill out this field
You need to agree with the terms to proceed


The oil and gas sector is  listed among the top ten largest water consumers and causes significant water pollution. The oil and gas industry is faced with higher standards for environmental protection and due to the current global market, lower prices. The environmental situation is exacerbated by a lack of water at most drilling sites. At many locations, the wastewater is not adequately treated to comply with local legislation. Wastewater treatment of produced water in oil fields is now considered to be a priority.

The wastewater on oil and gas well fields can be contaminated in different ways. We use our approved-and-tested module system and select the technology used with an evaluation procedure that is always tailored to the specific requirement.

With our modular system, we have experience worldwide in cleaning a wide variety of wastewater types. We are members of the leading professional associations in Germany:

  • VDE-Association German Technologies Electrical, electronical and information
  • VDI-Association German Engineers
  • ATV/DWA- German Wastewater associational


The wastewater from the oil and gas sector is highly variable in its volume and pollution load. This depends on many factors. So in each case a specific solution must be designed. By utilising our modular process technologies, we can adapt modules to handle any flowrate, any pollution loading and any effluent requirement.

Characteristics of produced wastewater are described below;

The usual sewage parameters for assessing the water quality or the efficiency of the treatment technology are as follows: (different analyses from Siberia, USA, South America and Mediterranean Sea)

  • pH 4-7
  • Oil content can be up to 1 g/l but is mostly removed from the produced water (as it is the valuable substance)
  • Salt concentration (salinity): The salinity is a typical characteristic of the produced wastewater. It can contain over 180,000 mg/l. This can usually be seen from the TDS, which essentially consists of sodium chloride. The chloride content is also an important indicator. Much produced wastewater is considered hypersaline, i.e. oversaturated with salt.

wastewater treatment for Oil and Gas Industry

  • Totally dissolved solids (TDS) up to 300,000 mg/l, mainly caused from NaCl
  • Totally suspended solids (TSS) between 50 and 1,000 mg/l
  • Temperature 15 to 35 degree Celsius regionally dependent
  • Hydrocarbons (aliphatic and aromatic)
  • Volatile, aromatic hydrocarbons BTEX (sum of Benzene, Toluene, Ethylbenzene and Xylene) and polycyclic, aromatic hydrocarbons PAH (PAH and alkyl phenols are not very good soluble in the wastewater.)
  • Organic acids such as Benzoic acids
  • Dispersed hydrocarbons, naphtha residues
  • Sum parameter for oxygen demand (chemical oxygen demand COD, biological oxygen demand BOD, usually determined in 5 days).
    The ratio of these two typical sum parameters gives an indication of the degradability of wastewater. BOD values vary from 500 to 3,000 mg/l
    COD values vary from 2,000 to 20,000 mg/l
  • Nitrogen, Phosphorus (only seen as traces in relation to carbon, but may contain an excess of nitrogen, which must be removed for some direct discharges)
  • Sulfides, depending on injection water
  • Heavy metals (Boron, Cadmium, Copper, Mercury, Iron and much more)
  • Radioactive materials (NORM, technically enhanced), as already discussed before
  • Uranium, thorium, radium with his decay products as well as radon Lead 210, potassium 40, polonium (Partially gaseous, especially concentrated in the sludge and deposits, loads of up to 15,000 Becquerel / gram, average waste load 100 Bq/g)


Process technology is a challenge. There is no universal process technology for the purification of produced water from oil and gas fields. Of course, manufacturers always present their own product as if it were a panacea. If one evaluates according to criteria such as cleaning performance, space requirements, operating costs, investment costs, as well as sustainability (further pollution), one comes to the conclusion that different process technologies have to be combined.

Mechanical Cleaning

It is necessary to remove easily screenable materials from the system and to protect the downstream units. Sedimentation tanks are simple, but only suspended solids are removed and the space required is high. Screening systems mechanically remove all particles, they are more effective, save space, but require more maintenance.

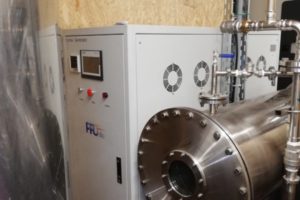

ClearFox Ozone Generator
ClearFox® Ozone Generator

The goal of oxidation is to bring pure carbon compounds from a dissolved to the suspended condition, in order to make compounds biodegradable, to oxidize heavy metals and to remove organic and inorganic components from the wastewater. It is more or less universally applicable and always suitable. In the typical process, strong oxidizing agents such as ozone, hydrogen peroxide with and without UV light expansion (e.g. Fenton process) are necessary.

In the catalytic wet oxidation, compressed air for the oxidation at high pressure is supersaturated in the water and the temperature is increased. This requires specific reaction volumes and expensive vessel construction. In both cases, the wastewater has to be post- treated for the subsequent processes, ozone requires high safety regulations, and the electricity requirement is high.

ClearFox AEO (Advanced Electro Oxidation)
ClearFox® AEO (Advanced Electro Oxidation)

In the electrochemical advanced oxidation / reduction (AEO), a potential is applied between two surface-coated electrodes, no chemicals are added, the process is non-pressure, inexplosive, the oxidation takes place on the surface or indirectly through radical formation. The doping of the electrode material must be adapted to the challenge (heavy metals, NORM, COD, AOX, etc.).

The initial invest (e.g. diamond electrode with Boron doping, BDD-electrode) can be large with high-quality doping. Electricity costs are moderate if the wastewater is highly conductive, and the electrical consumption drops. Electrical oxidation can be used for almost all contaminants in the wastewater produced, up effluent required for direct discharge.

Clearfox ECAO test
AEO test

Dissolved Air Flotation (DAF) / with precipitation (DAP)

Flotation (in conjunction with precipitation and flocculation) has a very high physical separation effect, especially for oils or emulsions that have been split. The investment costs are low, the type of sludge removal determines the operating costs.

Chemical Treatment (precipitation, hydroxide formation)

Adding precipitants to specifically bind substances soluble in water (heavy metals, COD, phosphorus) which then have to be removed (flocculation, flotation, filtration). The investment costs are negligible and the technology is simple. With the addition of chemical substances, more and more sludge accumulates, due to the resulting compounds. The cost of the chemicals can increase operating costs significantly. The resulting sludge may contain compounds that are toxic. At high NORM concentrations, the system must be designed without any deposits or chemical sinks inside the system components.

Microfiltration (sand anthracite, filter drums)

Depending on grade of filtration, filter drums or multilayer sandfilters (anthracite) are used to remove suspended solids (e.g. from the precipitation). Low investment costs, relatively simple, with high NORM – concentrations sinks must be avoided.

Biological Treatment (aerobic)

Suitable microorganisms oxidize and reduce carbon and nitrogen. These must be in touch with the wastewater long enough under suitable conditions (oxygen, no inhibitors, nutrients). A very high sludge age (high bacterial concentration) is required for the wastewater. This can only be achieved with sessile processes (FBBR) or increased sludge concentration, by passing the water through membranes (MBR).

Depending on the salinity, the biological activity drops and the wastewater has to either be diluted or the systems designed with bigger residence times. Halophilic bacteria reduce BOD and thus the COD load in produced wastewater. Very high space requirement for reaction volumes (only possible in rare cases for offshore). Little residues, very low operating costs, investment costs depending on the container requirements. Can only be used if wastewater is biodegradable.

ClearFox FBR
ClearFox® FBR with halophine bacteria

Basically, the wastewater produced can be inoculated with specially bred organisms or concentrated bacteria, or the naturally occurring ones in the system can be increased. This takes a long start-up phase, but it is safer and permanent at zero cost. In any case, however, the BOD must prove before that, the wastewater is degradable, the availability with the TOC and the ratio of the chemically oxidizable to the biologically oxidizable are sufficient for an economic process. Submerged fixed bed reactors (FBBR) are very complex to build, but cascaded ones are ideal for treating produced wastewater.

Sequencing Batch reactors (SBR) and MBR reactors are not ideal because the free-floating organisms only build up insufficient EPS and only monocultures. Membrane bioreactors (MBR) are like a combination of activated sludge biology and filtration through membranes. Investment costs are low, but they can only be used to a limited extent with produced water and they can only be used with a  high degree of pre-cleaning. Membrane resistance and good floc formation in biology are the prerequisites for stable operation. Trickling filters are very well suited to the produced water, but only in small quantities, since the space requirement exceeds the costs.

Biological processes for wastewater from the oil and gas industry can be used with little effort if the biodegradability has been checked. Biological treatment is usually justified even if the wastewater has to be diluted to lower salt concentrations (up to 40-60,000 mg/l NaCl) in order to provide the right environment for halophilic bacteria.

Ultrafiltration, Nanofiltration, Reverse Osmosis

All are used to remove fine suspended particles that have arisen from previous steps or that were already in the wastewater. Ultrafiltration (depending on the cut off of the membrane) competes with simple microfiltration. Nanofiltration has high investment costs, the operating costs are high.

Depending on the process requirements, however, this can be a good option in connection with previous technologies to bring the wastewater to a discharge quality via the direct filtration path. At first glance, reverse osmosis is suitable as a universal separation option for almost all pollutants in the produced water.

Reverse osmosis requires good pre-treatment (mostly biology + nanofiltration) and is very expensive to invest and operate (chemicals, membranes). In order to keep the flux rates high, chemicals must be added to prevent membrane fouling.

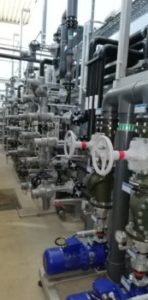

ClearFox activated carbon after fuzzy filtration and DAP
ClearFox® activated carbon after fuzzy filtration and DAP

Adsorption and Ion Exchange

For small quantities of produced water, and when choosing the right materials, a selective removal of many pollutants is possible. It requires good pre-treatment, moderate investment cost, and operating costs can be extremely high. Usually only suitable as a partial flow for polishing.


Comparison of process technologies for produced water

process Capex Opex stability secondary pollution efficiency Space required
Mechanical treatment +++ ++ + + +++
DAP +++ + ++ +
DAF +++ + + + +
Chemical Precipitation +++ + + +++
Oxidation general + +++ ++
Ozone, Kat-wet +++ ++ +++ ++ ++
AEO +++ + +++ +++ ++
Biological treatment +++ + +++ +
Ultrafiltration/Nano + + + ++ ++ +
ROA (Osmosis) + + +++ +
Mikro/Sand Antracit Filters +++ +++ +++ +++ + +
Adsorption AC + ++ ++
