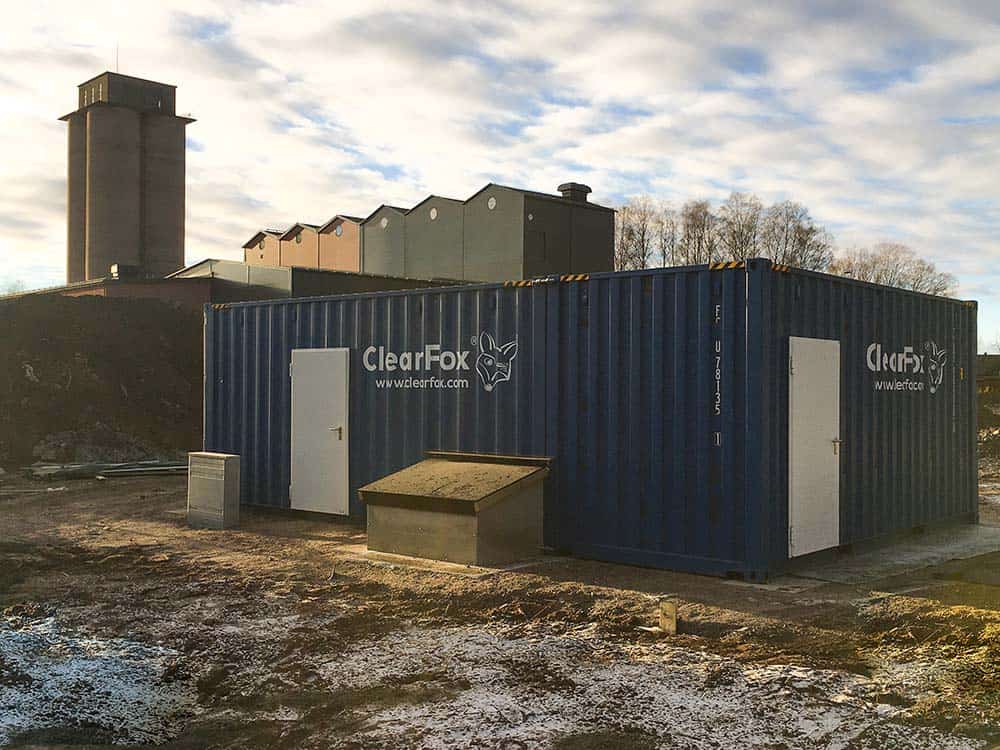

Portable wastewater treatment plant for a tobacco company

ClearFox® DAF and ClearFox® DiOx EO installed in a portable wastewater treatment plant

Project Details

Size
1 m³/hr
Location
Sweden
Completed
2021

Project Delivery

Features
Wastewater treatment for direct discharge
Laboratory analyses

Project Results

Before
After
COD
2264 mg/l
<1000 mg/l
BOD
1056 mg/l
<500 mg/l
Cadmium
0,000888 mg/l
0,0001 mg/l
Copper
0,387 mg/l
0,2 mg/l
Zink
0,11 mg/l
0,1 mg/l

Discussion

Situation

An international tobacco company operates a site in the east of Sweden. There, the company focuses on the production of snus, a chewing tobacco popular in Scandinavia. As the company expanded its production facilities, a higher amount of industrial wastewater was generated, which it would like to treat in a portable wastewater treatment plant in the future. Before the capacity expansion, the company collected its wastewater to be picked up by a local tankering company at regular intervals.

The local authorities advised the company to abandon this form of wastewater disposal after the capacity expansion. As PPU Umwelttechnik GmbH had already worked successfully with another company site in Egypt in 2018, the Swedish site also opted for a portable wastewater treatment plant from ClearFox®.

Problem

Regulations on the direct discharge of wastewater are particularly strict in eastern Sweden. For example, the limit value for heavy metal removal of cadmium is 0.0001 and copper 0.2 milligrams per litre. The challenge for PPU Umwelttechnik GmbH was to prove that the portable wastewater treatment plant can fall below these limits. By means of wastewater samples, jar tests and elaborate laboratory analyses, the company was able to provide this proof.

Solution

The ClearFox® portable wastewater treatment plant contains a screening, a DAF, a DiOx electrical oxidation, a sand filter and an adsorber filter. The ClearFox® team outsourced the desired sludge press. After the screening has removed all solids larger than 3 mm, the wastewater flows into the dissolved air flotation. There, the plant breaks down BOD and COD most economically. With a seven-stage circulation system, the plant diverts the wastewater and passes it through the electrical oxidation. Thus, the hourly flow rate of the ClearFox® DiOx EO is 7 m³/h, while all other plant components operate with only 1 m³/h wastewater load.

Since sludge is produced in the ClearFox® DAF as well as in the ClearFox® DiOx EO, the press is the ideal solution to reduce the volume of sludge. This has mainly economic reasons for the company, as the sludge can be removed at much greater intervals.

FAQ

Yes, the ClearFox® systems are modular and flexible. By analyzing your specific requirements, such as limit values, wastewater composition and flow rates, we can offer you a tailor-made solution.

The plant consists of several treatment steps, including screening, dissolved air flotation (DAF), electrical oxidation ( DiOx ), sand filtration and adsorbent filtration . These technologies work together to meet even the most stringent environmental regulations.

After analyzing your requirements, the production, delivery and commissioning of a mobile ClearFox® system typically takes between three to six months, depending on the project requirements.

Yes, the modular design allows additional modules to be added to handle increased wastewater volumes without the need for a complete new investment.

ClearFox® carries out a thorough analysis of your wastewater, including sampling, jar testing and laboratory analysis. Based on this, we create a concept that is specifically tailored to your requirements.
