ClearFox® QuickOne
Domestic Sewage Treatment Plant
Tagline
- Almost silent
- No Odour
- Low Maintenance
- EN 12566-3 Certified
Gallery
Description

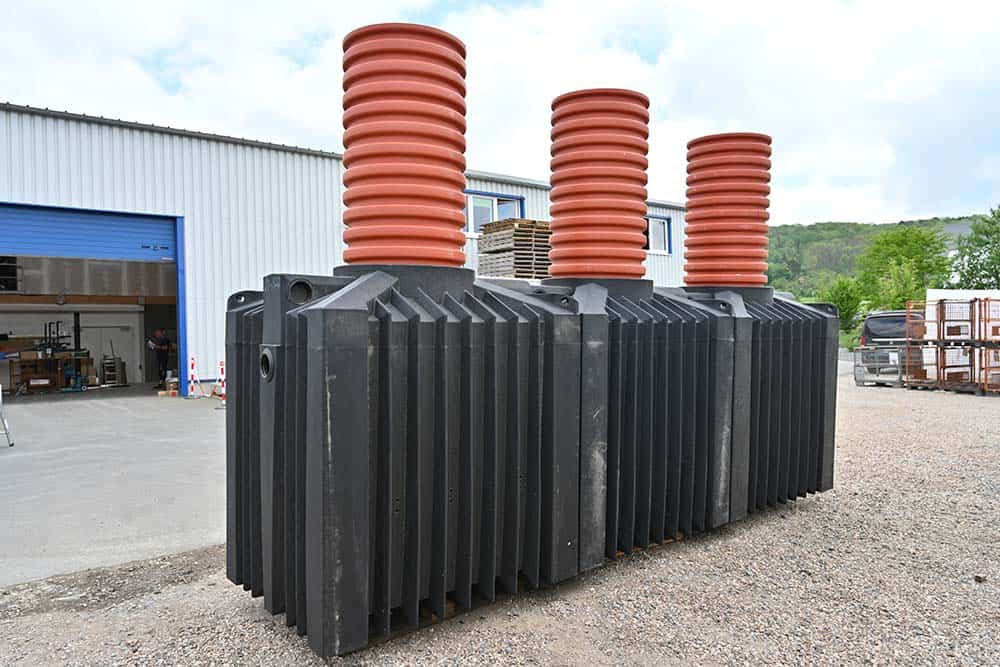

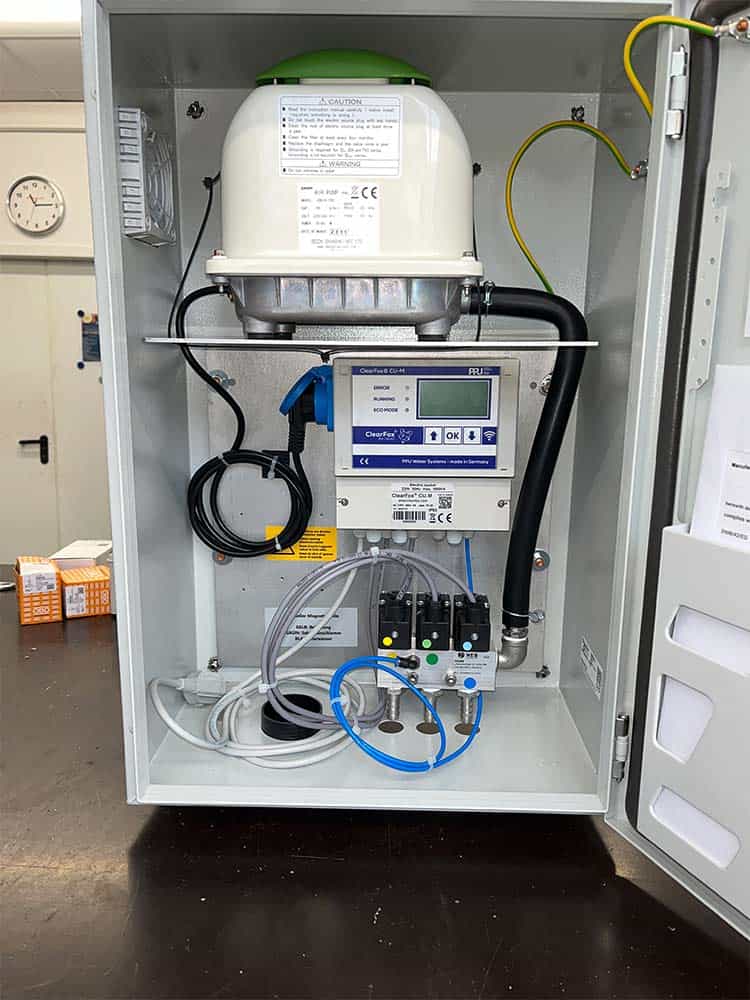

The ClearFox® QuickOne+ is a fully pre-assembled SBR domestic sewage treatment plant, manufactured in Germany by PPU Umwelttechnik GmbH. It is suitable for new developments, or as an upgrade to a septic tank system. Ideal for houses, schools, restaurants and other commercial or domestic applications. Complete systems available for up to 24PE. Market leading effluent quality, with possibility of add on modules for phosphorus removal and disinfection. Tested and proven to have desludging intervals of more then 1 year. Thanks to an integrated pressure sensor, the QuickOne can independently adjust the aeration times by measuring and monitoring wastewater flows into the system. At higher inflow peaks, the system increases oxygen to enhance performance. If the inflow is low, the system switches to standby mode.

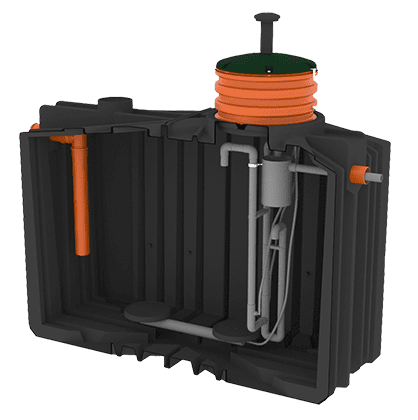

How It Works

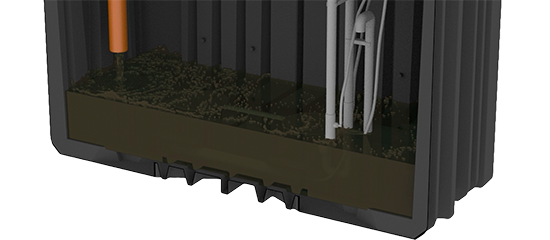

1. Filling
The wastewater flows into the ClearFox® QuickOne. The automatic fill level measurement recognises when wastewater flows into the domestic sewage treatment plant. The cycles are then adjusted accordingly

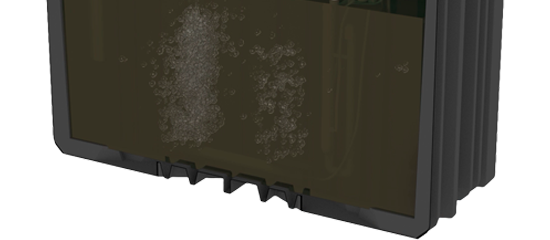

2. Cleaning and Aeration

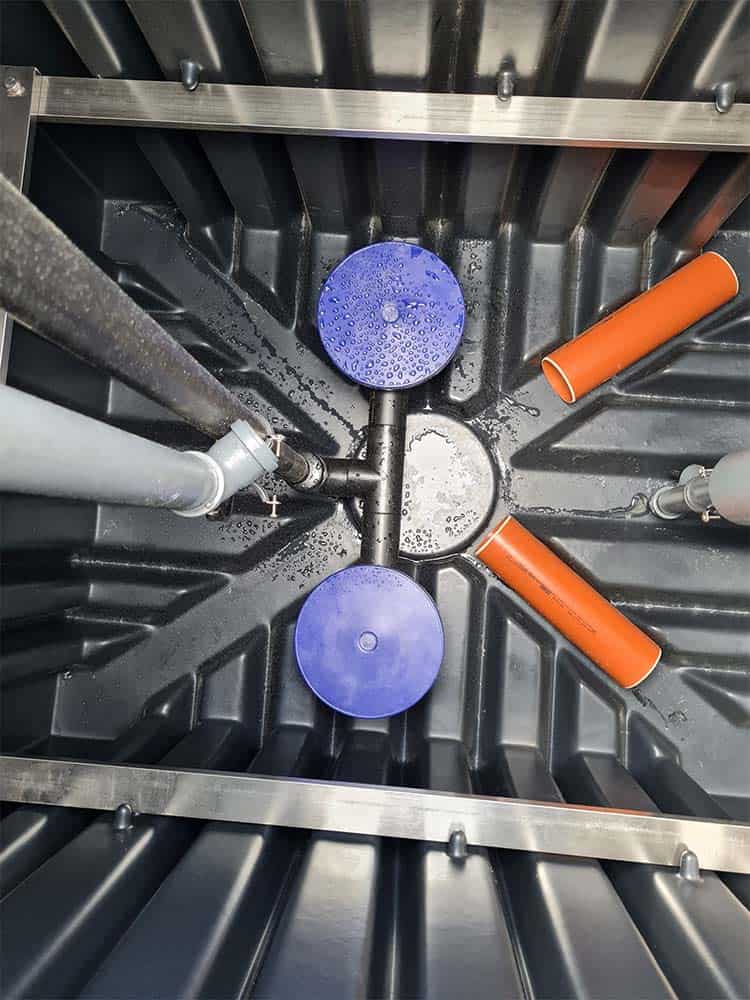

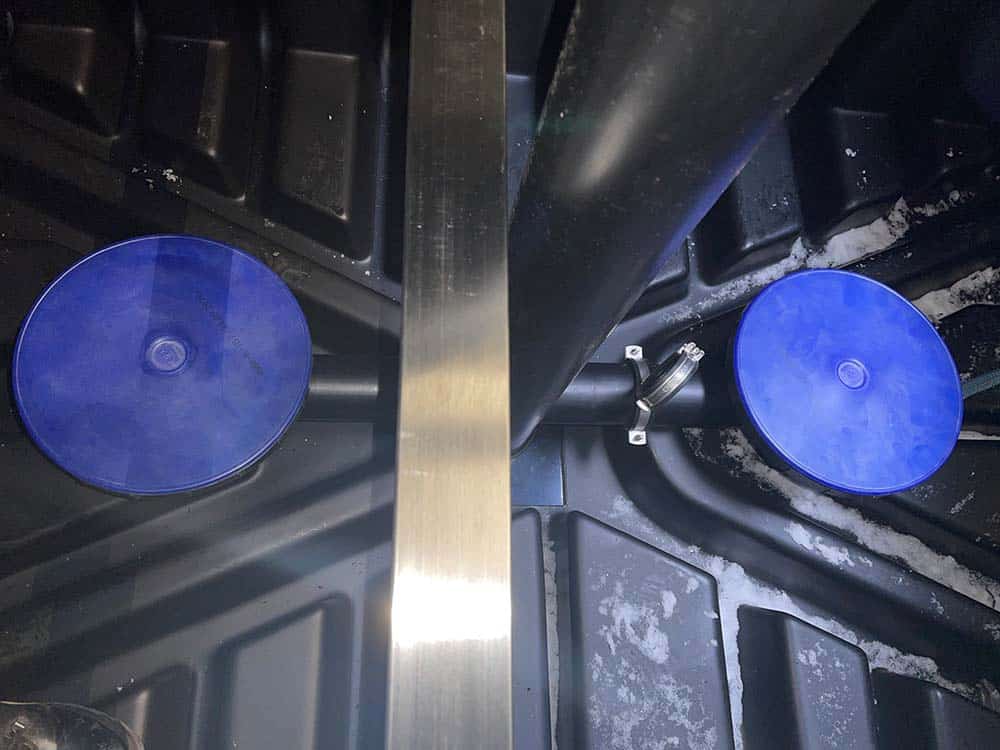

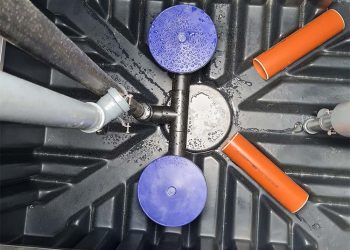

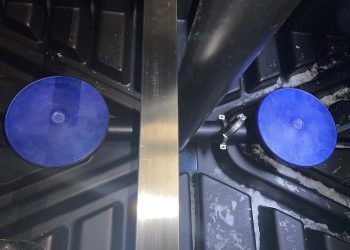

The system injects air into the wastewater via perforated discs at the bottom of the tank. During the aeration process, the microorganisms consume the carbon and nitrogen in the wastewater. The duration of aeration is adapted to each individual type of wastewater. The more contaminated the wastewater, the longer the aeration phase. This also ensures uniform mixing of the wastewater. The process is fully biological and does not require the addition of chemicals.

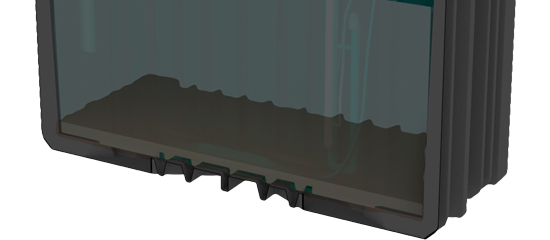

3. Settling
After aeration, a settlement phase occurs, where any biomass and activated sludge settles. The remaining clean water at the top is the treated effluent that is ready for discharge.

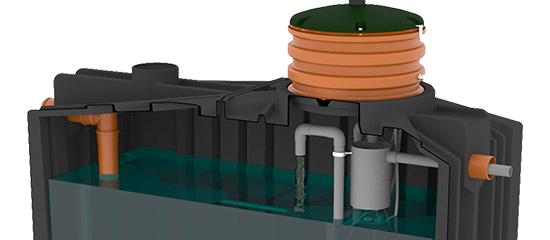

4. Flushing

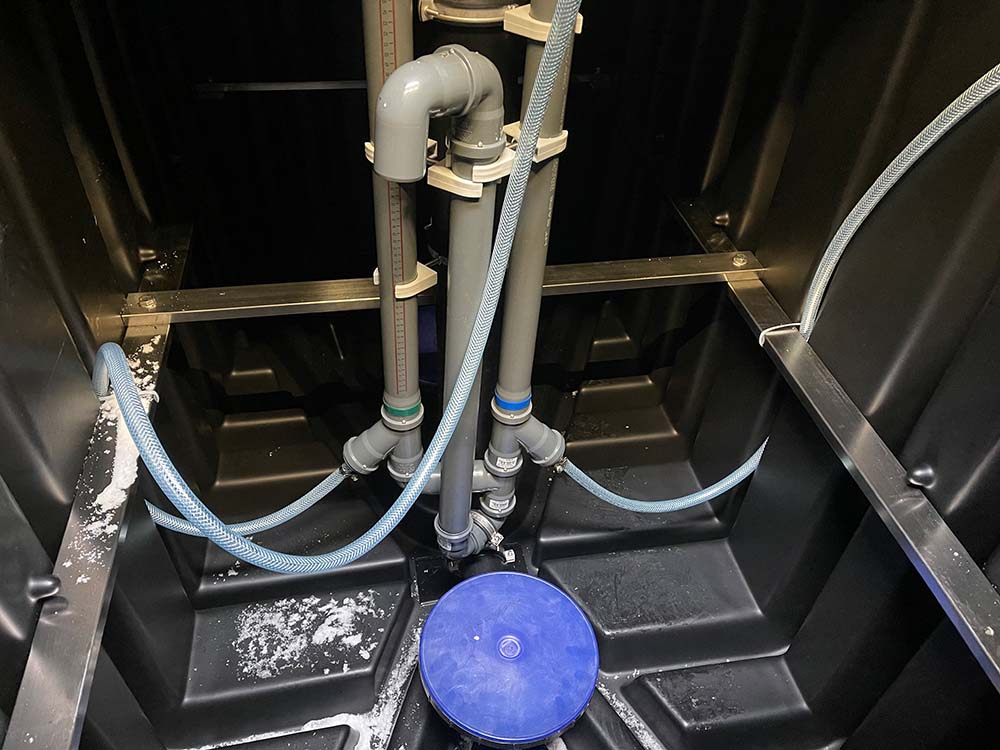

Before the system discharges the clean water, it flushes the airlift pump pipes with compressed air to clean them and remove any suspended solids that have settled in them. This ensures a very low level of suspended solids in the treated wastewater.

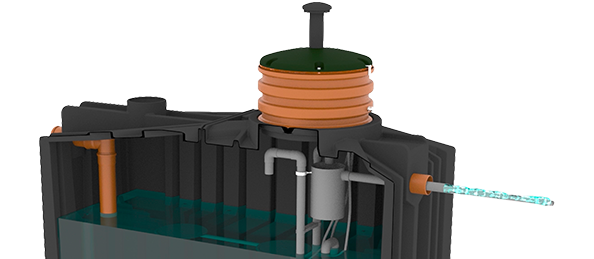

5. Clear Water Extraction
In this final phase, the clean effluent is discharged from the system by non clogging airlift pump. The system completely discharges the clean water from the top of the water column. The final effluent is suitable for irrigation, direct discharge or reuse.
Advantages
- ✓ Guaranteed Compliance
Certified to EN12566-3 and compliant with all European standards and norms. Accepted by environment authorities worldwide.
- ✓ 15 Years of Security
We provide a 15-year manufacturer’s warranty on the tank body (when properly installed according to the instructions).
- ✓ Global Experience
Successfully installed in over 50 countries worldwide. A proven, tried and tested solution that exceeds expectations.
- ✓ Made in Germany
Manufactured entirely under strict quality controls at our headquarters in Bayreuth, Germany.
- ✓ Quality Construction

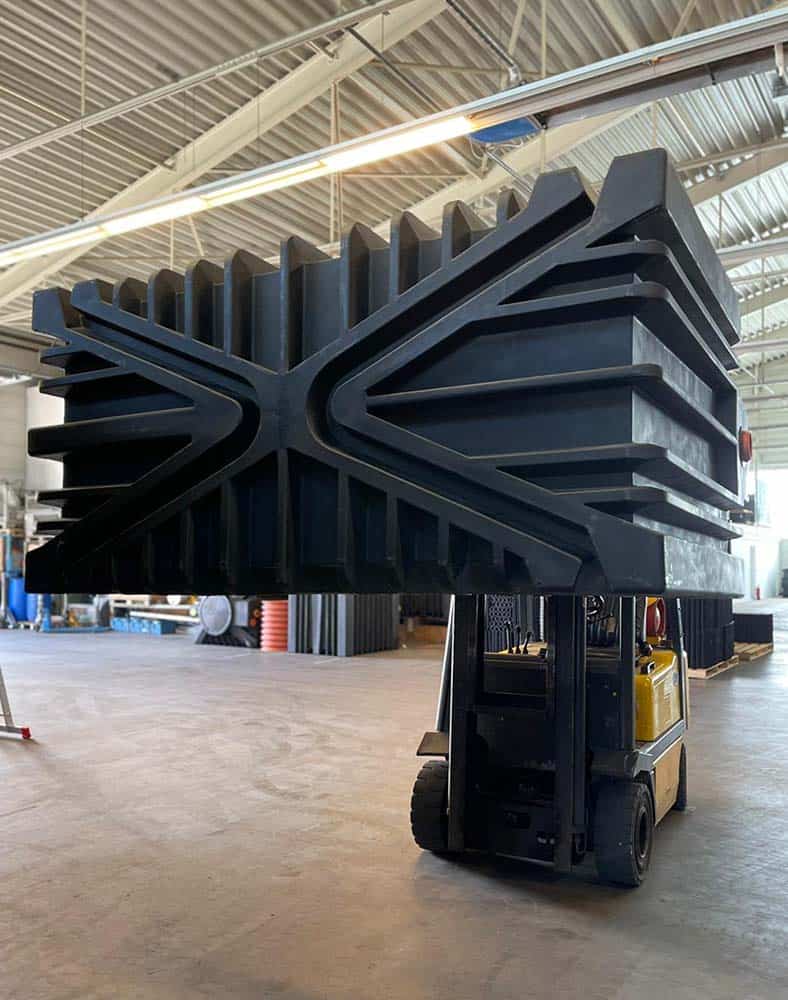

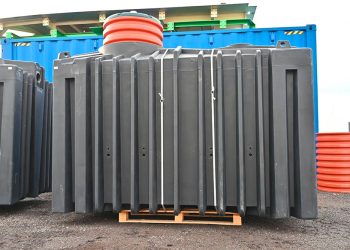

Single-piece, rotationally moulded tank reinforced with stainless steel for long-lasting performance.
- ✓ Aftersales Support
Dedicated aftersales customer support team on hand.
Videos
Specifications
| Power consumption | 0,52 kWh/day |
|---|---|
| Dimensions | Height: 220 cm Length: 153 cm Width: 122 cm |

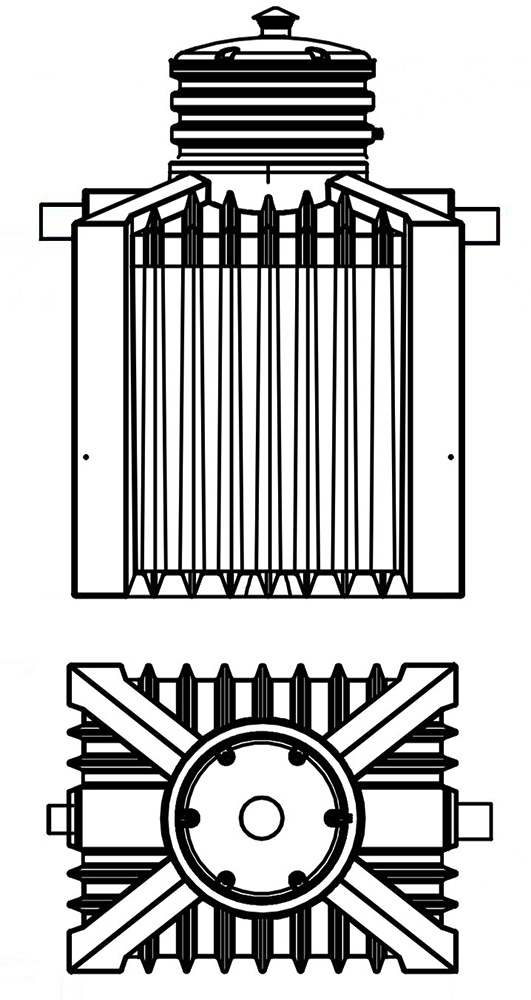

| Capacity | 4 PE |
| Drainage class | N |
| Cleaning performance | COD: 93.7% BOD: 98.1% TN: 67.6% NH4-N: 99.4% SS: 95.8% |
| Effluent quality | COD: 48 mg/L BOD: 6 mg/L TN: 18 mg/L NH4-N: 0.2 mg/L SS: 17 mg/L |
| Degree of use | Direct discharge |
| Material | KG / PE |
| Downloads | Drawing |
| Power consumption | 0,52 kWh/day |
|---|---|
| Dimensions | Height: 220 cm Length: 243 cm Width: 122 cm |

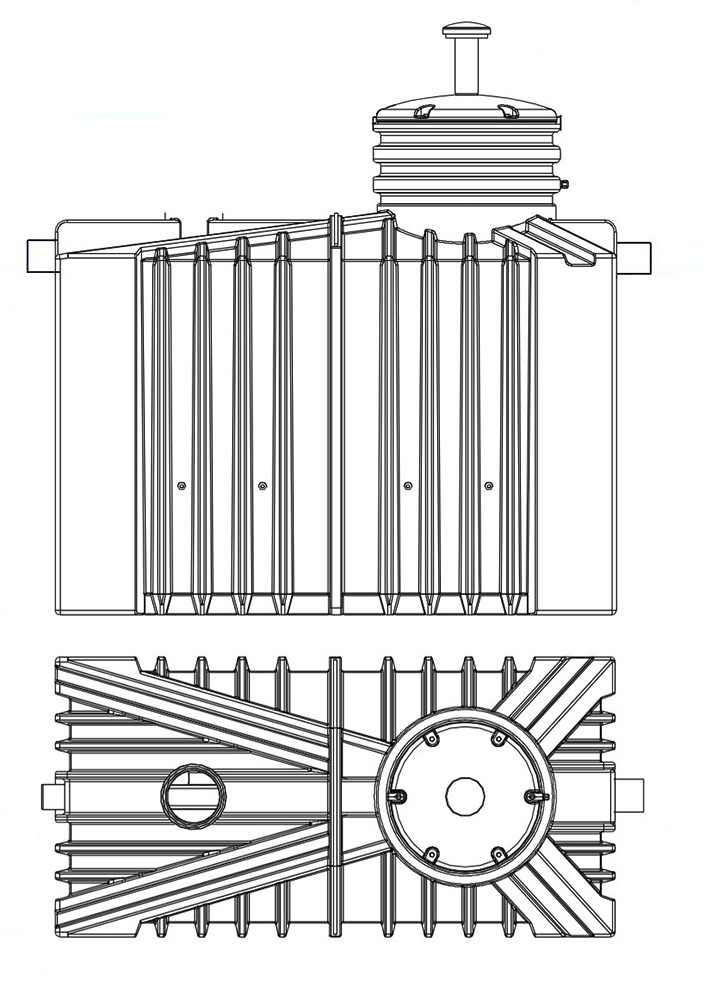

| Capacity | 6 PE |
| Drainage class | N |
| Cleaning performance | COD: 93.7% BOD: 98.1% TN: 67.6% NH4-N: 99.4% SS: 95.8% |
| Effluent quality | COD: 48 mg/L BOD: 6 mg/L TN: 18 mg/L NH4-N: 0.2 mg/L SS: 17 mg/L |
| Degree of use | Direct discharge |
| Material | KG / PE |
| Downloads | Drawing |
| Power consumption | 1,04 kWh/day |
|---|---|
| Dimensions | Height: 220 cm Length: 486 cm Width: 122 cm |

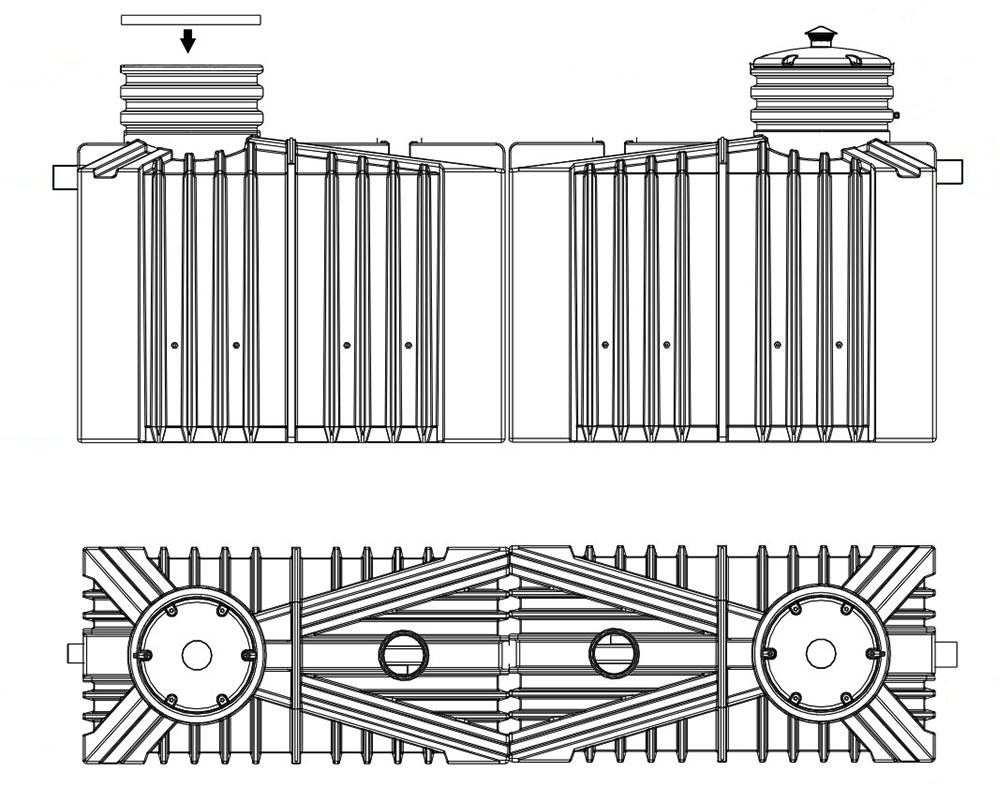

| Capacity | 12 PE |
| Drainage class | N |
| Cleaning performance | COD: 93.7% BOD: 98.1% TN: 67.6% NH4-N: 99.4% SS: 95.8% |
| Effluent quality | COD: 48 mg/L BOD: 6 mg/L TN: 18 mg/L NH4-N: 0.2 mg/L SS: 17 mg/L |
| Degree of use | Direct discharge |
| Material | KG / PE |
| Downloads | Drawing |
| Power consumption | 1,55 kWh/day |
|---|---|
| Dimensions | Height: 220 cm Length: 729 cm Width: 122 cm |

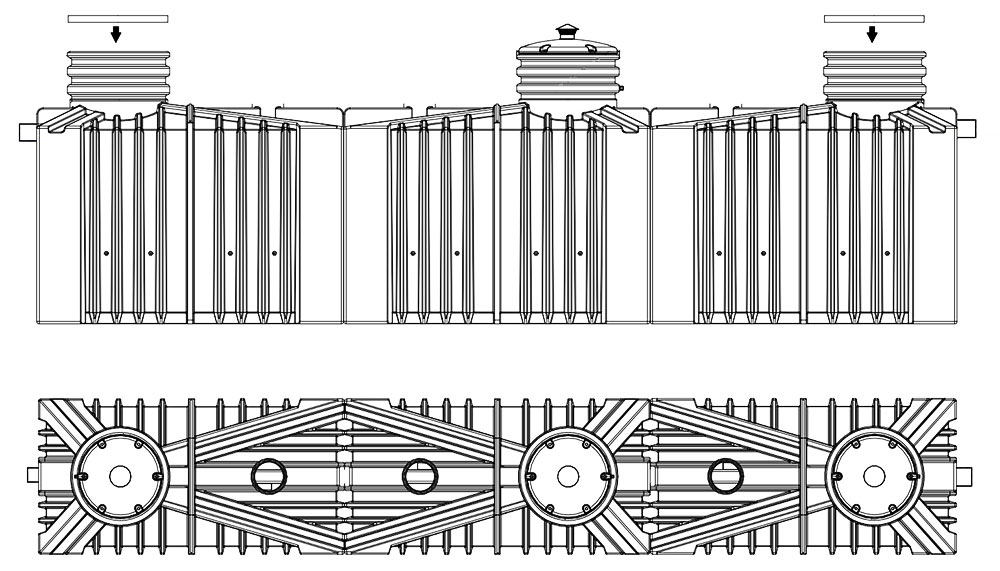

| Capacity | 18 PE |
| Drainage class | N |
| Cleaning performance | COD: 93.7% BOD: 98.1% TN: 67.6% NH4-N: 99.4% SS: 95.8% |
| Effluent quality | COD: 48 mg/L BOD: 6 mg/L TN: 18 mg/L NH4-N: 0.2 mg/L SS: 17 mg/L |
| Degree of use | Direct discharge |
| Material | KG / PE |
| Downloads | Drawing |
| Power consumption | 2,1 kWh/day |
|---|---|
| Dimensions | Height: 220 cm Length: 729 cm Width: 244 cm |

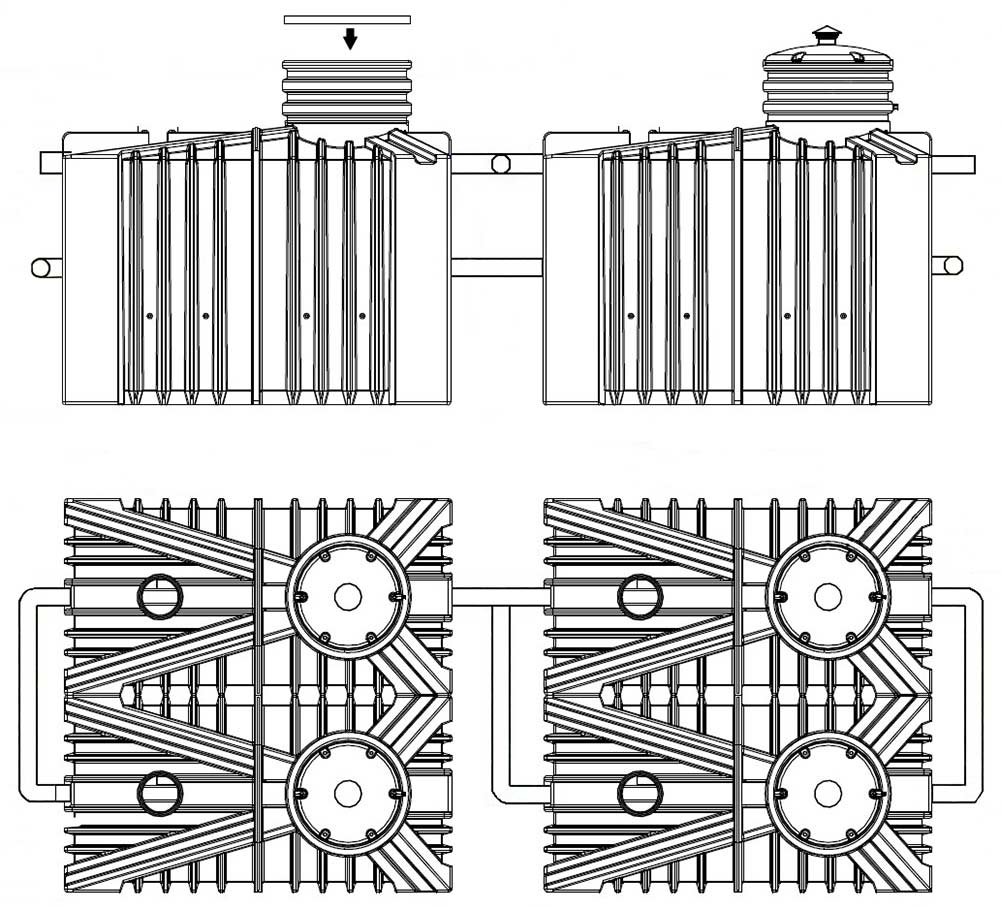

| Capacity | 24 PE |
| Drainage class | N |
| Cleaning performance | COD: 93.7% BOD: 98.1% TN: 67.6% NH4-N: 99.4% SS: 95.8% |
| Effluent quality | COD: 48 mg/L BOD: 6 mg/L TN: 18 mg/L NH4-N: 0.2 mg/L SS: 17 mg/L |
| Degree of use | Direct discharge |
| Material | KG / PE |
| Downloads | Drawing |
Downloads
Reference Projects
FAQs
1. What is the ClearFox® QuickOne+ system?
The ClearFox® QuickOne+ is a fully pre-assembled Sequencing Batch Reactor (SBR) domestic sewage treatment plant designed for applications ranging from 4 to 24 Population Equivalents (PE). Manufactured in Germany by PPU Umwelttechnik GmbH, it is suitable for new developments or as an upgrade to existing septic tank systems in residential, commercial, or domestic settings.
2. How does the ClearFox® QuickOne+ system work?
The system operates using an SBR process technology with fully aerated chambers. It features a smart SBR process that automatically adjusts aeration times based on inflow conditions. An integrated pressure sensor allows the system to increase oxygen supply during higher inflow peaks to enhance performance, and switch to standby mode during low inflow periods.
3. What are the key features of the ClearFox® QuickOne+ system?
- No Replacement Parts: Designed without components that require regular replacement.
- No Noise: Operates silently, ensuring no disturbance.
- No Odour: Engineered to prevent unpleasant smells.
- EN 12566-3 Certified: Meets European standards for small wastewater treatment systems.
4. Can the ClearFox® QuickOne+ system be installed in sensitive areas?
5. What is the desludging interval for the ClearFox® QuickOne+ system?
The system has been tested and proven to have desludging intervals of more than one year, reducing maintenance frequency and associated costs.
6. Is the ClearFox® QuickOne+ system suitable for upgrading existing septic tanks?
Yes, the ClearFox® Nature can be utilized to upgrade existing septic tanks, enhancing wastewater treatment efficiency without the need for electrical power.
7. What applications are suitable for the ClearFox® QuickOne+ system?
The system is versatile and can be used in various settings, including houses, schools, restaurants, and other commercial or domestic applications requiring efficient sewage treatment solutions.
