Wastewater treatment after tank cleaning

ClearFox® fixed bed biological reactor and lamella calrifier for wastewater treatment after tank cleaning from a tank wagon cleaning system

Project Details

Size
80 m³/day
Location
Oberhausen, Germany
Completed
2011

Project Delivery

Features
High polluted wastewater
Quick installation on site

Project Results

Before
After
COD
3000 mg/l
160 mg/l
BOD
400 mg/l
25 mg/l

Discussion

Situation

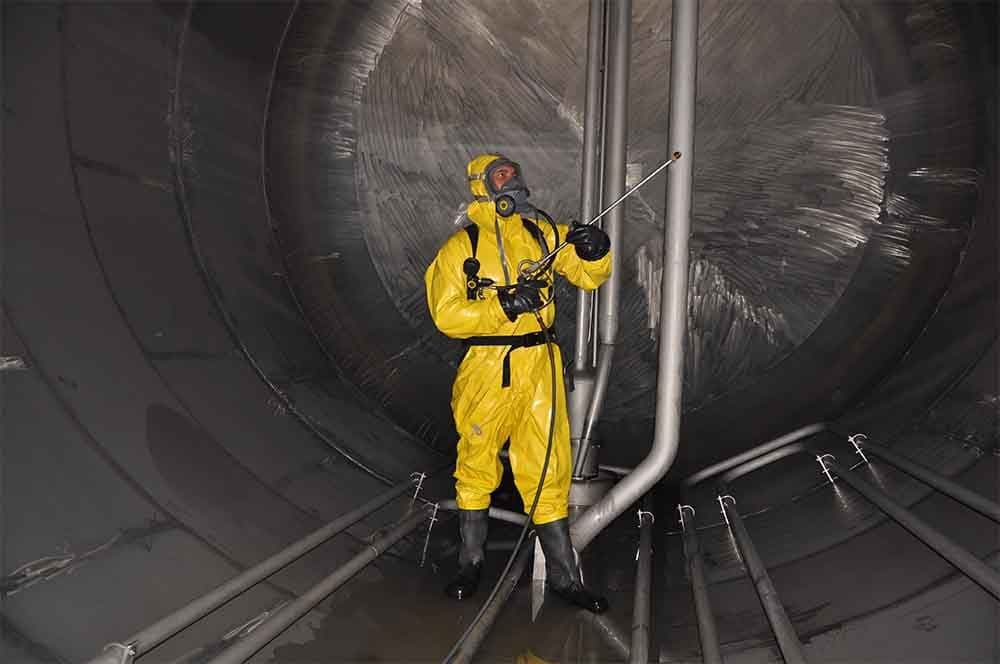

Cleaning water from tank cleaning occurs in numerous industrial sectors. The logistics sector also plays a crucial role in this. The transport of industrial goods is crucial for a country’s economy. The transport vehicles are heavily soiled after use, which is why they have to undergo tank cleaning. The resulting cleaning water must not be allowed to flow into the environment without treatment.

A company in Germany manufactures railway wagons for national and international use. These include particularly robust tank wagons that transport oil, gas or fuel, among other things. The tank wagons are particularly reliable, which is why they are in use for many years. After each transport, tank cleaning of the tank wagons is particularly important. For this purpose, the company has built a cleaning facility for tank wagons in Oberhausen in southern Germany. Tank cleaning produces cleaning water, the treatment of which is an important part of the process.

Problem

Since the tank wagons transport many different oils and gases, the cleaning water from tank cleaning is very heavily contaminated with different components. This results in a very high inert chemical oxygen demand. In addition, the cleaning plant for tank wagons uses different detergents, which further increase the degree of contamination of the cleaning water.

One of the customer’s challenges was the irregular wastewater load that is generated during tank cleaning. The cleaning water accumulates in the cleaning plant for tank wagons exclusively during working hours. No wastewater from tank cleaning is produced in the evening hours, at night and on weekends. The client wanted to remove a large part of the pollution from the cleaning water itself in order to subsequently discharge it into the municipal sewage treatment plant.

Solution

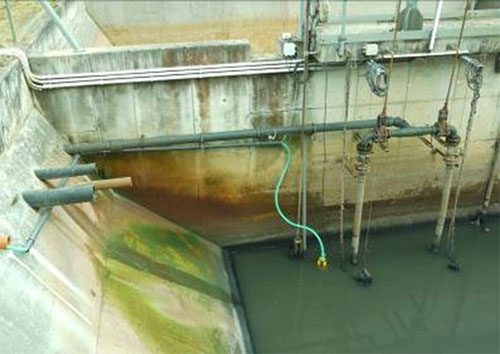

The ClearFox® team installed a containerized wastewater treatment plant with a fixed bed biological reactor and lamella clarifier on the site of the cleaning plant for tank wagons. It used an existing on-site pumping basin as a balancing tank. The wastewater from tank cleaning collects in this tank before it flows continuously into the treatment plant.

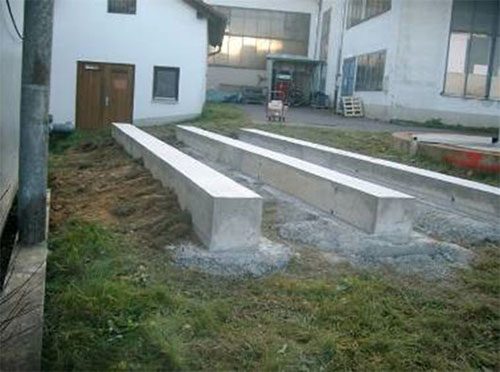

The biological treatment stage takes place in the fixed bed biological reactor. Microorganisms treat the dissolved substances in the wastewater and convert them into secondary sludge. The lamella clarifier separates this from the treated wastewater and stores it. For this project, the ClearFox® team took over the complete planning, the project planning of the treatment plant, the installation on site and the instruction of the employees. Prior to delivery, the ClearFox® team constructed a concrete foundation to ensure the containerised wastewater treatment plant would stand securely. The installation time of the wastewater treatment plant was limited to one day, as the ClearFox® team pre-assembled it in the main factory in Bayreuth and only installed it on site.

FAQ

Yes, the container sewage treatment plant can be customized to your requirements. Modules can be added or adjusted depending on the wastewater composition, volume and working hours. Our team carries out a needs analysis and develops a customized solution.

The installation time on site is usually only one day, as the system is delivered pre-assembled. However, a concrete foundation must usually be prepared before installation.

Microorganisms decompose dissolved organic substances in the wastewater and convert them into secondary sludge. These microorganisms settle in the fixed bed, ensuring stable and continuous purification.

Yes, by using an equalizing tank, the wastewater is temporarily stored to ensure a continuous supply to the system. This means that cleaning remains efficient even with fluctuating loads.

Regular maintenance work includes checking the biological processes, emptying the sludge tank and checking the pumps and mechanical components. Our team also offers training and service contracts for this.
