ClearFox® Containerized Systems
Containerized wastewater treatment
Designed and Delivered to Site
- Fast Turnaround
- Buy, Lease or Lease to Buy
- Scalable
- Fully Guaranteed

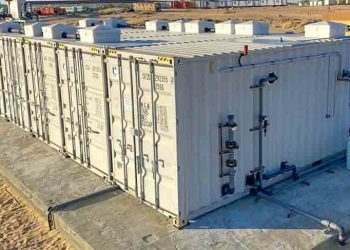

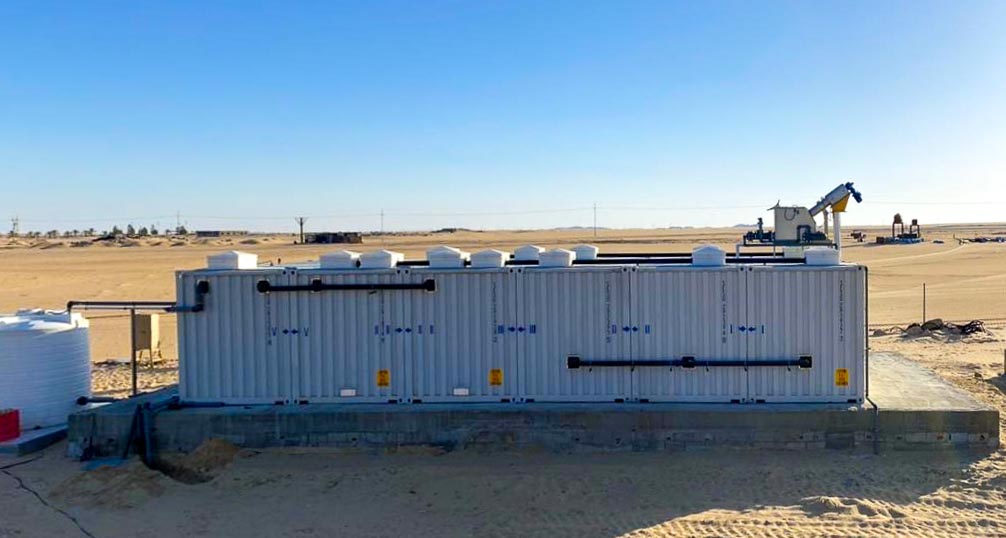

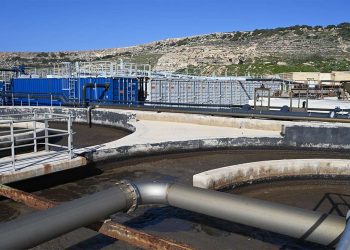

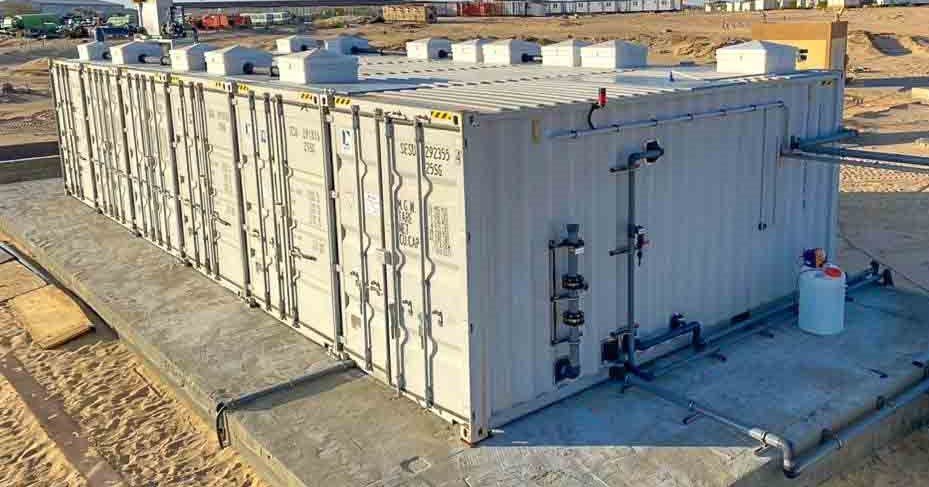

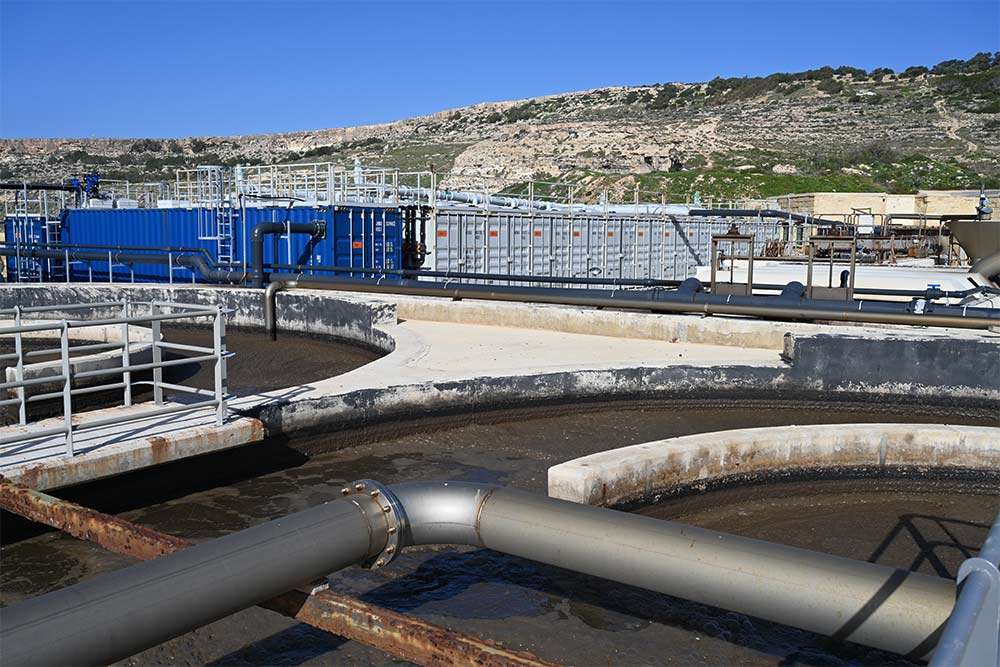

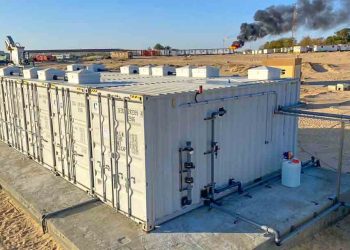

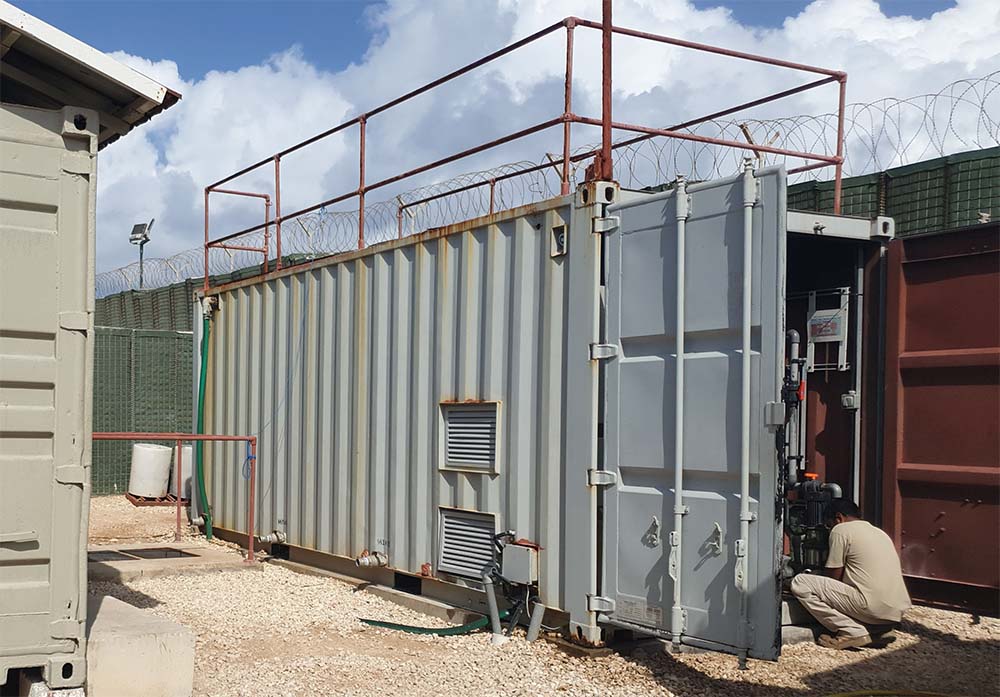

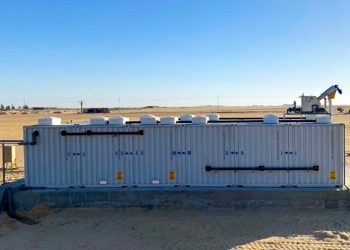

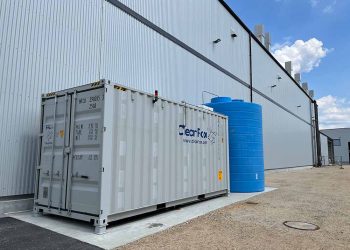

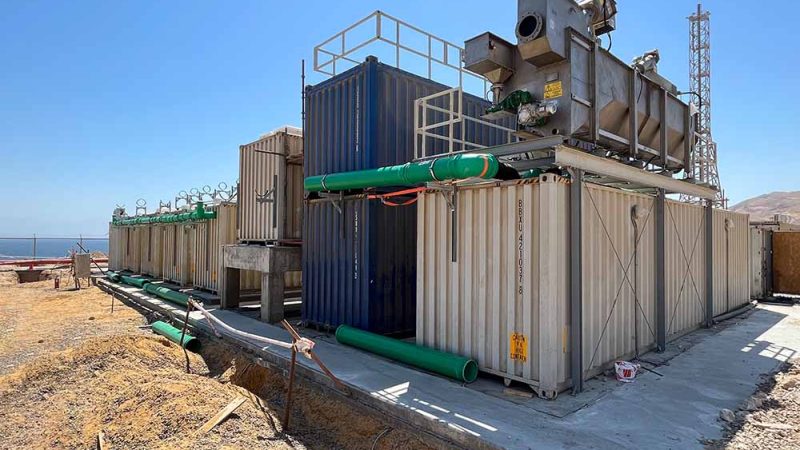

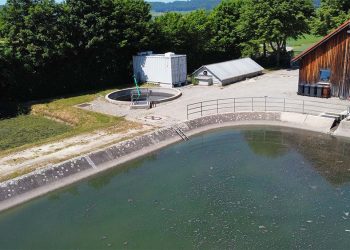

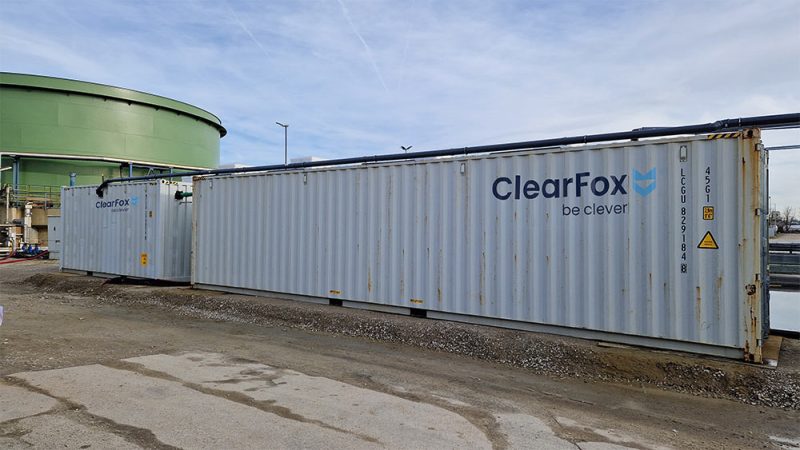

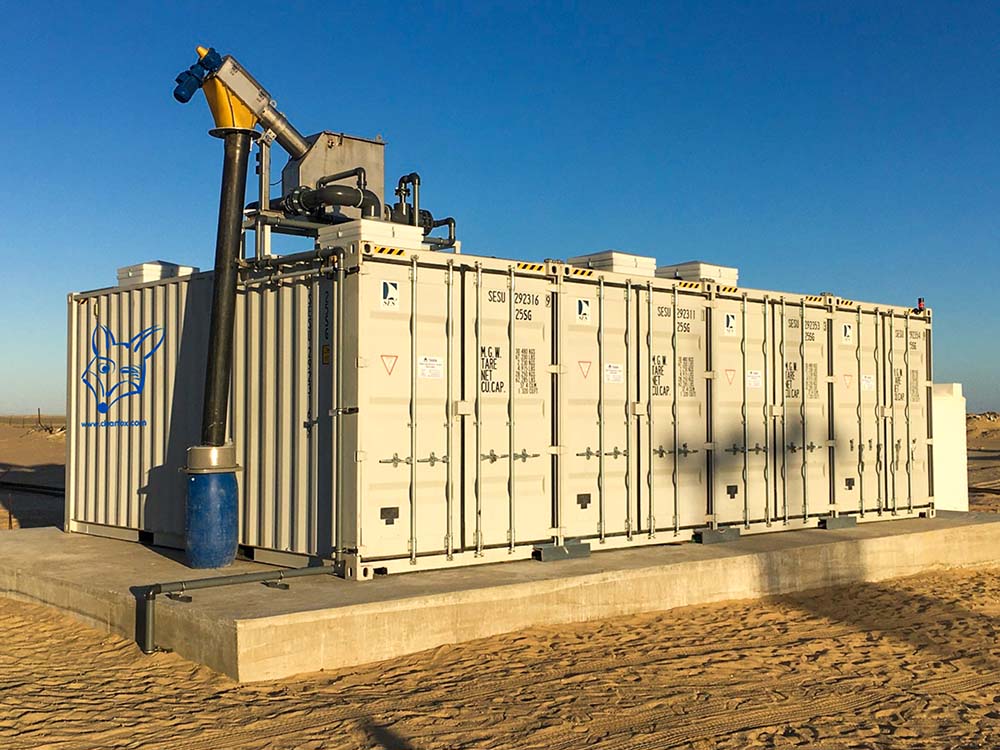

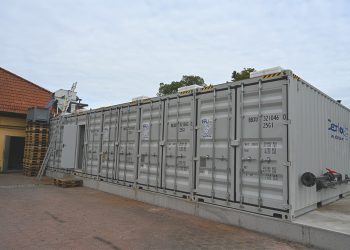

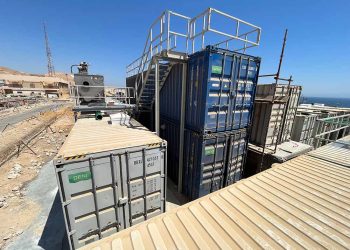

Gallery
Description

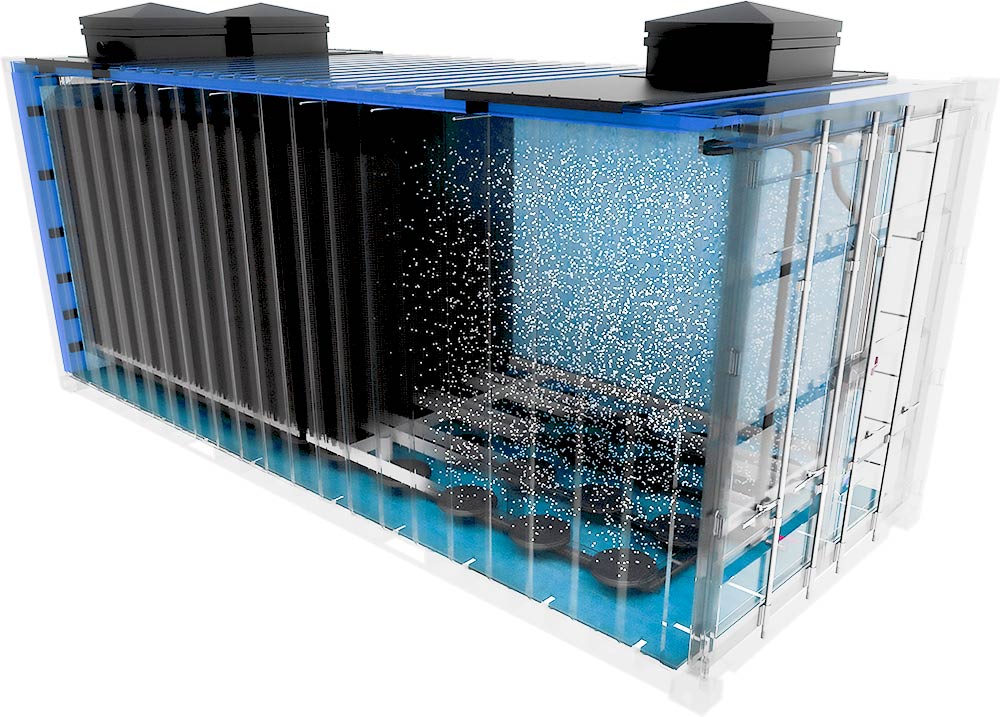

The ClearFox® Containerized System is a packaged treatment plant, custom designed and pre-installed within ISO shipping containers. As a modular solution, it is easily transportable by land or sea, with minimal onsite installation required. Suitable for both municipal and industrial wastewater, it can handle projects of any size, treating wastewater from 50 to 20,000 people (7,5 to 3000 m³ per day). The system can achieve any required effluent quality for discharge, reuse, or irrigation.
How It Works
The following main modules are available:
Mechanical pre-treatment
Sludge treatment

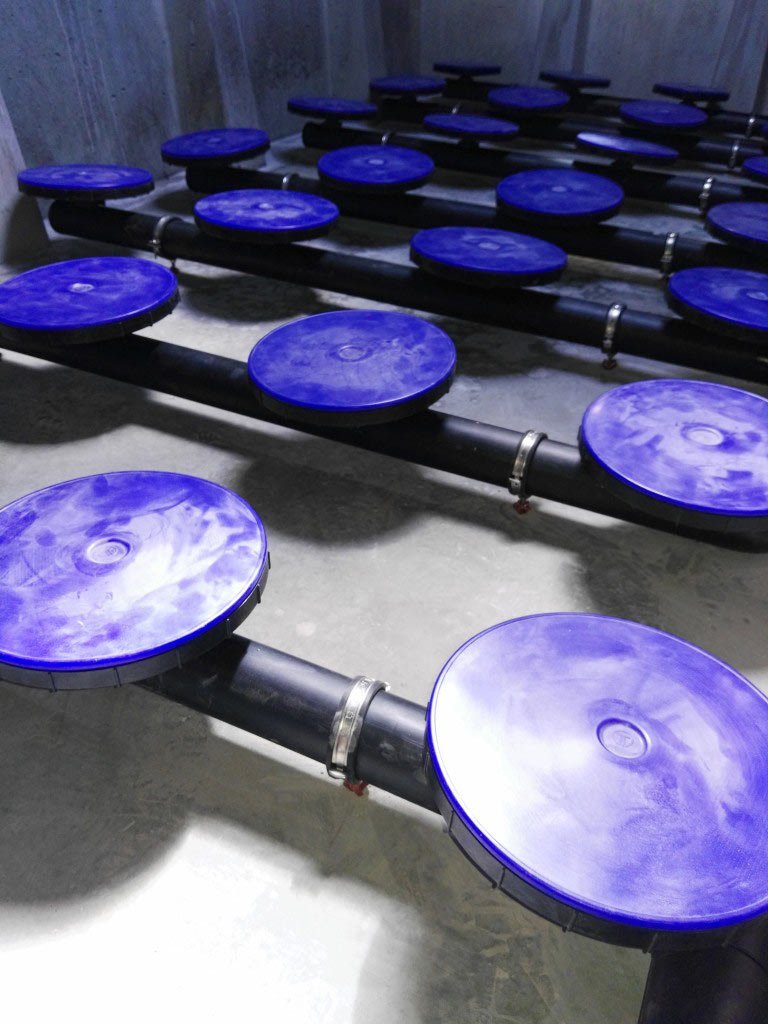

Biological treatment

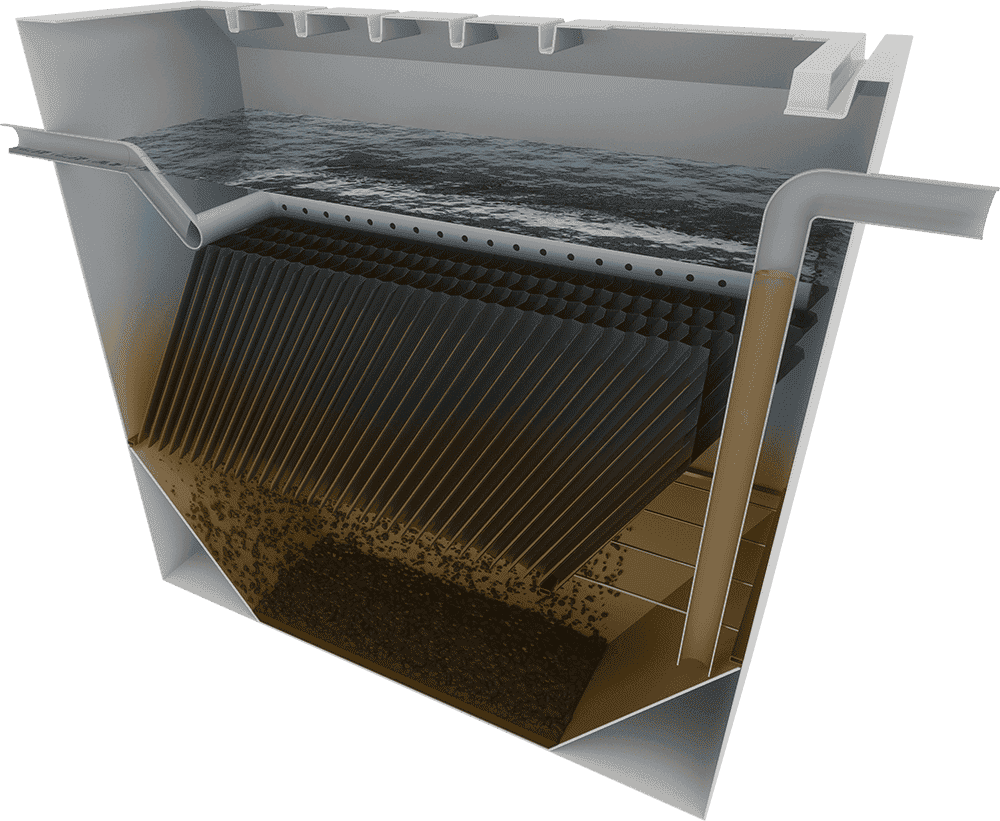

Clarification
Denitrification/ P Reduction / UV Sterilisation
pH regulation
Ozonation
Filtration
Dissolved Air Flotation (DAF)
Advantages
- Low CapEx and OpEx
ClearFox® containerized wastewater treatment plants offer a highly cost-efficient solution with low capital and operating expenses, as they require no extensive planning, civil works or permanent buildings. The system only needs to be placed on a solid base and connected. All equipment is preinstalled and factory tested, which ensures fast deployment and minimal installation costs.
- Quick Installation
We manufacture our mobile systems based on the plug and play principle. Each unit is fully preassembled, factory tested and delivered ready for immediate use. Only the inlet, outlet and power supply need to be connected on site. This allows for rapid installation and makes Clearfox® Containerized Systems ideal for projects with tight dealines, remote locations and both temporary and permanent applications.
- Tailored To Your Needs
Every system is designed according to the specific needs of our customer. Whether a compact single-container solution or a multi-stage treatment setup is required, the layout is deisgned to fit site conditions and regulatory standards. The modular structure allows flexible scaling and low-cost expansion if project demands change over time.
- Trusted Worldwide

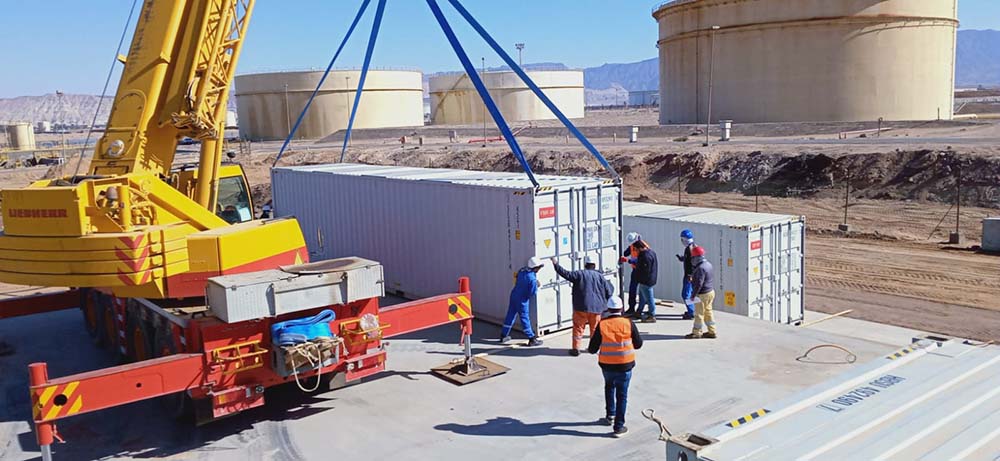

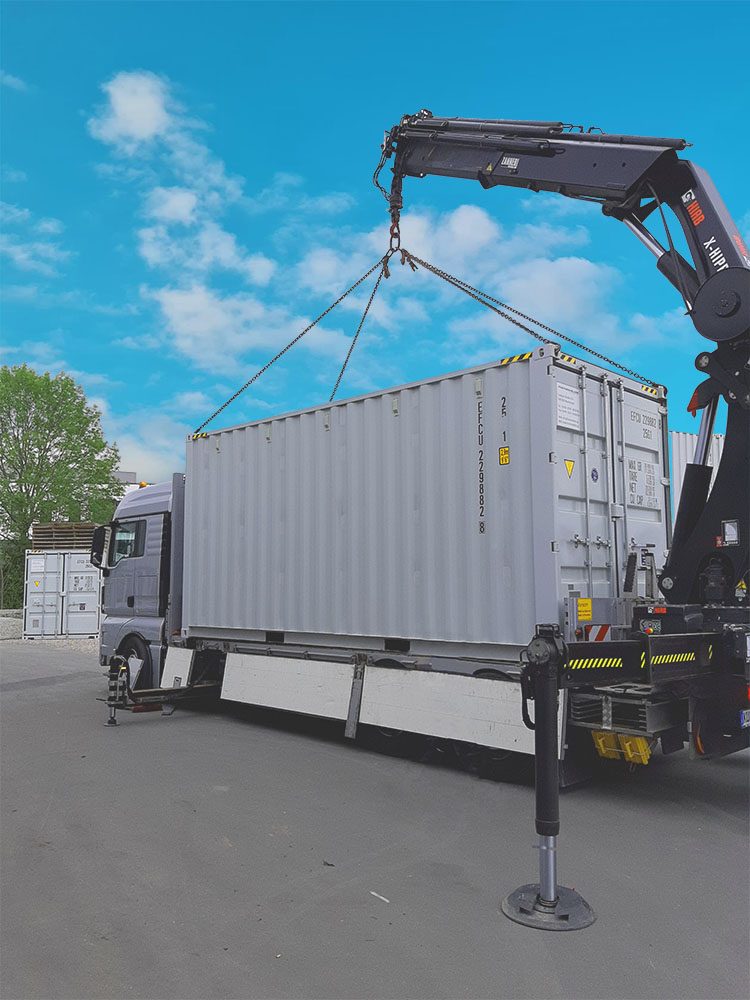

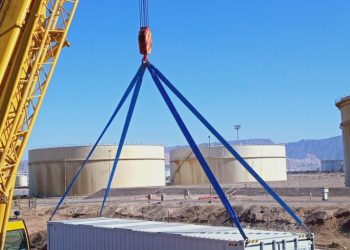

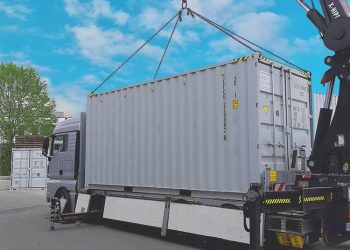

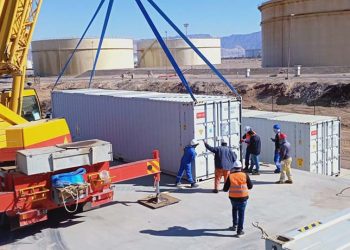

Containerized systems can be easily transported anywhere in the world, by land or by sea and can be installed in remote and isolated areas. Our portable wastewater treatment systems are enginnered for maximum performance in every climate zone. We have successfully installed systems in over a hundred countries, from the Arctic to hot desert environments. Take a look at our reference projects for more details.
- Made in Germany
Our systems are manufactured in Germany under strict quality control processes that ensure long-lasting performance and operational reliability. As an ISO 9001 and 14001 certified company, we adhere to the highest international standards for quality management and environmental responsibility. Every system is built using high-grade materials, engineered for durability and thoroughly tested before shipment.
- Easy and Reliable
Because our solutions are installed in diverse locations around the world, they are built to function smoothly even when operated by untrained personnel. All core processes run automatically and adjust themselves as needed. An integrated energy-saving mode keeps power consumption low without compromising performance. For customers who require additional oversight, we offer optional remote monitoring and control.
Videos
Specifications
Module type | C-5 |
---|---|
Flow rate | 5 m³/d |
Flow rate Q10 | 0,5 m³/h |
Flow rate Q20 into fixed bed tank | 0,25 m³/h |
Load BOD5 | 2 kg/d |
Load COD | 4 kg/d |
Measures (l/w/h) in m | 6,1/2,5/2,8 |
Machine house (l/w/h) in m | inside container |
Weight (transport/operation) | 7,0/20,0 to |
Power connected | 0,35 kW |
Power consumption / d | 5,6 kW/d (0,35 kW x 16 h/d) |
Buffer | included |
Sludge storage for | 80 d |
Module type | C-15 |
---|---|
Flow rate | 15 m³/d |
Flow rate Q10 | 1,50 m³/h |
Flow rate Q20 into fixed bed tank | 0,75 m³/h |
Load BOD5 | 6 kg/d |
Load COD | 12 kg/d |
Measures (l/w/h) in m | 6,1/2,5/2,8 |
Machine house (l/w/h) in m | inside container |
Weight (transport/operation) | 7,0/23,0 to |
Power connected | 0,5 kW |
Power consumption | 8 kW/d (0,5 kW x 16 h/d) |
Buffer | included |
Sludge storage for | 80 d |
Module type | C-30 |
---|---|
Flow rate | 30 m³/d |
Flow rate Q10 | 3,00 m³/h |
Flow rate Q20 into fixed bed tank | 1,50 m³/h |
Load BOD5 | 12 kg/d |
Load COD | 24 kg/d |
Measures (l/w/h) in m | 6,1/2,5/2,8 |
Machine house (l/w/h) in m | Outdoor cabinet (l/w/h) 210x115x215 |
Weight (transport/operation) | 7,0/26,0 to |
Power connected | 1,1 kW |
Power consumption/d | 17,6 kW/d (1,1 kW x 16 h/d) |
Buffer | included |
Sludge storage for | 30 d |
Module type | CF-C-50 |
---|---|
Flow rate 50 m³/d | 50 m³/d |
Flow rate Q10 | 5,00 m³/h |
Flow rate Q20 into fixed bed tank | 2,50 m³/h |
Load BOD5 | 20 kg/d |
Load COD | 40 kg/d |
Measures (l/w/h) in m | 6,1/2,5/2,8 |
Machine house (l/w/h) in m | inside container |
Weight (transport/operation) | 7,0/23,0 to |
Power connected | 1,75 kW |
Power consumption | 28 kW/d (1,75 kW x 16 h/d) |
Buffer | not included |
Sludge storage | not included |
Downloads
- Brochure ClearFox® containerized systems
- Data sheet ClearFox® containerized systems C-5
- Data sheet ClearFox® containerized systems C-15
- Data sheet ClearFox® containerized systems C-30
- Data sheet ClearFox® containerized systems C-50
- P&ID Example ClearFox® containerized systems
- PIA report ClearFox® containerized systems
Reference Projects
FAQs
1. What is a ClearFox® containerized wastewater treatment system?
2. What capacities can these systems handle?
3. What applications are suitable for containerized systems?
These systems are ideal for:

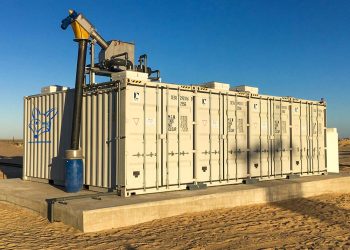

Oil and gas drilling sites
Construction sites
Worker camps
Military camps
Mining camps
Temporary municipal and industrial wastewater treatment
Refugee camps
Port wastewater treatment
Hotels
Festival sites
Dairies
Sugar refineries
Breweries
Wood drying plants
Pharmaceutical industry

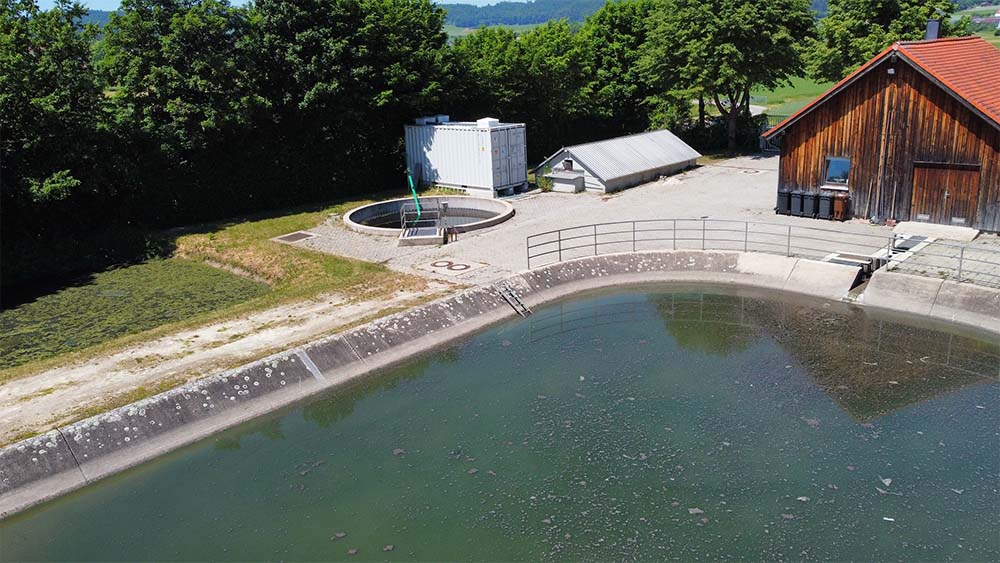

Pond treatment plant upgrades
This versatility makes them suitable for both municipal and industrial wastewater applications.
4. What are the advantages of ClearFox® containerized systems?
Key benefits include:
- Market-leading technology with strict environmental and quality standards
- Single-supplier provision of all necessary equipment
- Manufactured in Bavaria, Germany, ensuring high-quality standards
- 20-year warranty for new packaged systems purchased directly
- Suitability for any climate zone
- Ease of transportation worldwide
- Minimal planning and construction requirements
- No special infrastructure needed onsite, only a solid base for placement
