Wastewater treatment for a wood processing company

ClearFox® FBBR for wastewater treatment in a wood processing company

Project Details

Size
28 m³/day
Location
Germany
Completed
2023

Project Delivery

Features
Reliable wastewater treatment for direct discharge
Purification up to discharge class N

Project Results

Before
After
COD
950 mg/l
90 mg/l
BOD
400 mg/l
20 mg/l
NH4-N
120 mg/l
10 mg/l

Discussion

Situation

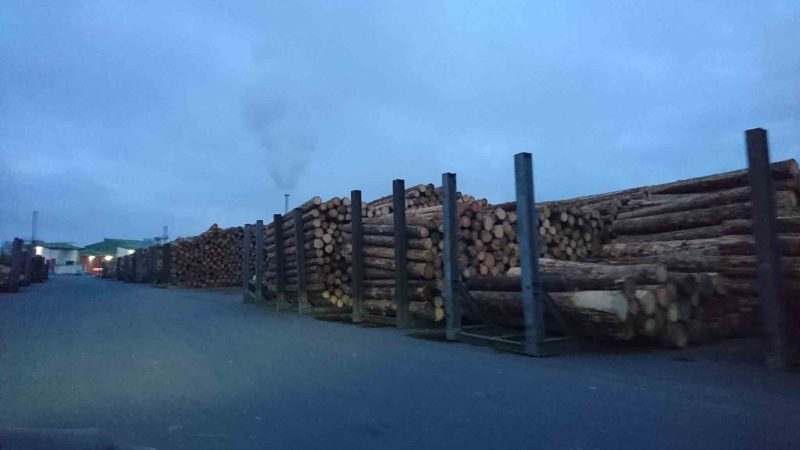

A company from southern Germany has focussed on the processing of wood. Facades, furniture, and customised interior construction projects are produced at several locations in Germany and Switzerland. The company was planning its own wastewater treatment system for the main production site so that it could be discharged directly into the environment.

An engineering office, which was to realise the order, asked PPU Umwelttechnik GmbH for a compact solution. The wastewater comes from four sources: Firstly, the employees produce around 2.25 m³ of sewage every day. Secondly, condensate is produced during the various drying processes. This is around 9 m³ from the sawn timber dryer and around 9 and 7 m³ from various chip dryers.

Problem

The first challenge in this project was the composition of the condensate. This consists mainly of formic acid (500 mg/l), acetic acid (400 mg/l) and methanol (30 mg/l). In addition, there are trace substances of tannic acid, pyrogallol, essential oils and unsaturated hydrocarbons. As these are not biodegradable, they only influence the COD, which, with the addition of sewage, is around 950 mg/litre. The pH value fluctuates between 5 and 7.

The target for direct discharge is discharge class N. This is defined by a COD of 90 mg/litre, a BOD5 of 20 mg/litre and an ammonium content of 10 mg/litre. The decisive factor here is the ammonium. If the concentration is too high, it harms many aquatic plants and animals. Special bacteria are therefore used to convert the ammonium into less harmful nitrogen – the so-called nitrification.

Solution

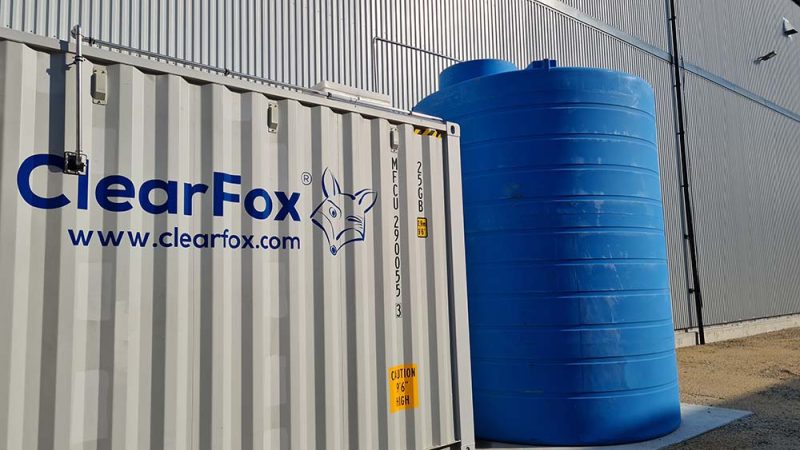

The ideal solution for this project was a ClearFox® containerised wastewater treatment plant with fixed bed technology. The wastewater first flows together from the various sub-streams in a buffer tank. This is a concrete tank installed below ground, which also equalises the inflow peaks. The wastewater then flows through a mixing section, which neutralises the pH value. This is necessary for the subsequent biological treatment to be effective. The fixed-bed reactor consists of growth bodies for microorganisms that respire the contaminants in the wastewater. This produces a sludge, which is subsequently separated from the clear water by a lamella clarifier.

The ClearFox® containerised wastewater treatment plant impresses above all with its compactness. Thanks to its small footprint, it can be installed on the company premises and can discharge the treated wastewater directly into a nearby river. As the wastewater treatment plant was produced and tested as a turnkey solution at the main plant in Bayreuth, the delivery, installation, commissioning, and employee training was limited to just one day.

FAQ

Yes, the system is flexible and can be adapted to the specific requirements of different wastewater types. Whether it is wastewater, process water or complex condensates - the technology can be optimized by adapting it to your project needs.

Information must be available on the wastewater volumes, their chemical composition and the required discharge values. In addition, there should be a sufficiently large area for the installation of the system.

The ClearFox® containerized wastewater treatment plant is extremely compact and requires minimal space, however the exact footprint will depend on the desired capacity and the specific requirements of your project.

In most cases, yes. The ClearFox® containerized wastewater treatment plant is modular and flexible, so it can be adapted to projects in different industries and with different wastewater requirements. An analysis of your wastewater situation is the first step to confirm this.

The fixed bed technology offers high efficiency in biological wastewater treatment, is low maintenance and does not require complex backwashing. It is ideal for compact and long-lasting solutions.

Since the system is delivered turnkey, installation and commissioning is usually limited to one day. This enables quick and uncomplicated integration into your operational processes.

Yes, the ClearFox® container sewage treatment plant has a modular design and can be expanded with additional modules as requirements increase.
