ClearFox® Packaged FBBR Systems
Compact Treatment Plant
Designed and Delivered to Site
- Fast Turnaround
- Buy, Lease or Lease to Buy
- Scalable
- Fully Guaranteed
Gallery
Description
The ClearFox® Packaged Systems provide a ready-to-use solution for wastewater treatment based on the high rate advanced fixed-bed reactor technology. We offer these as complete packaged systems or as customised solutions with our modular components to match each customer’s specific needs. The modular design approach enables our packaged plants to handle both industrial and municipal wastewater flows from as little as 7,5 m³/day up to 5000 m³/day. The systems can achieve any required effluent quality for discharge, reuse, or irrigation. We offer our Packaged Plants in two configurations:

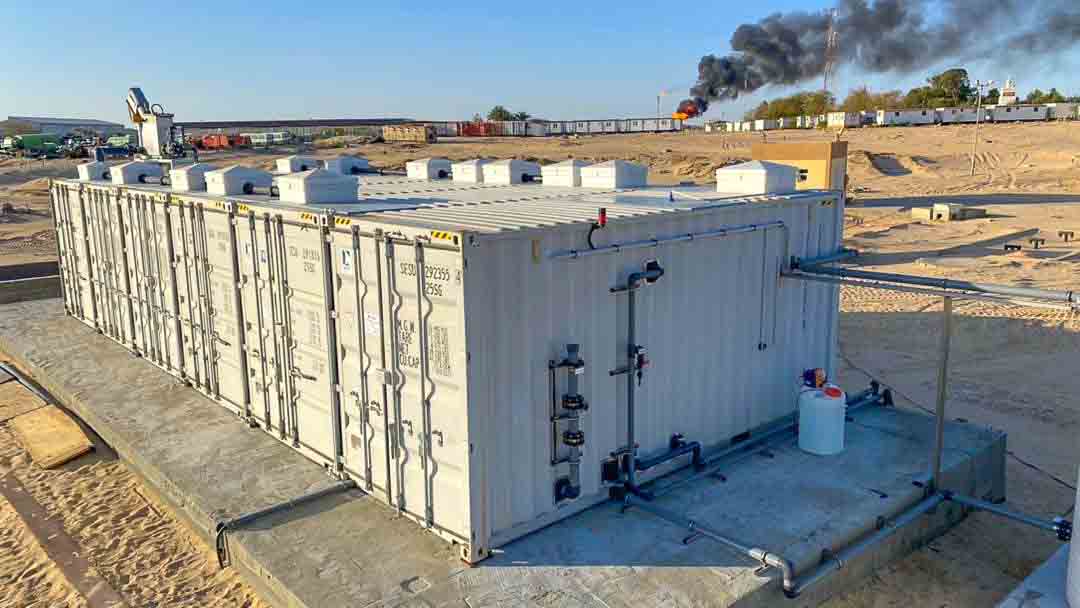

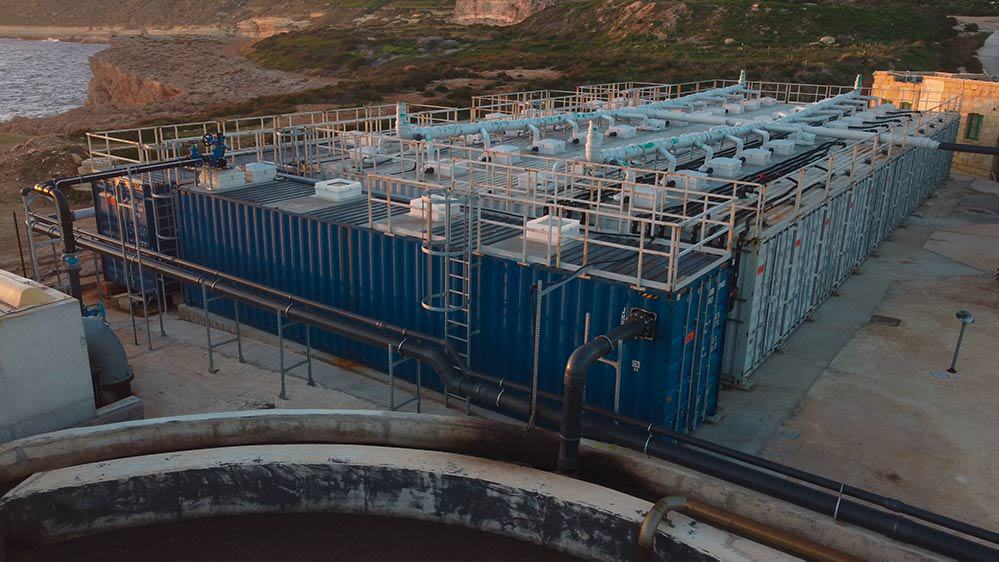

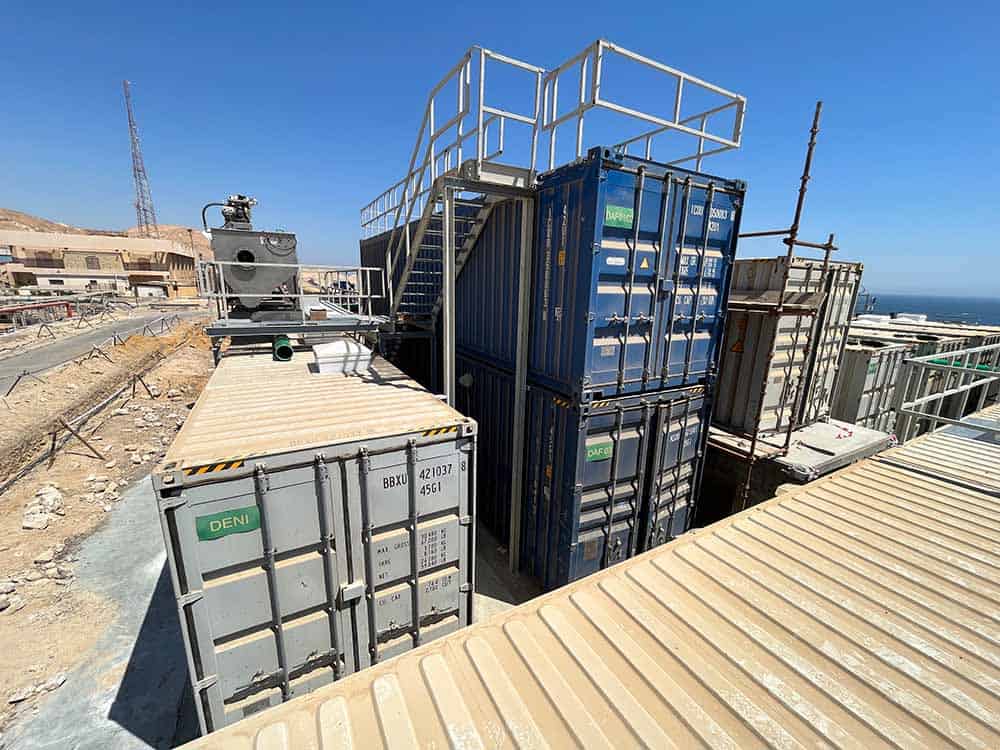

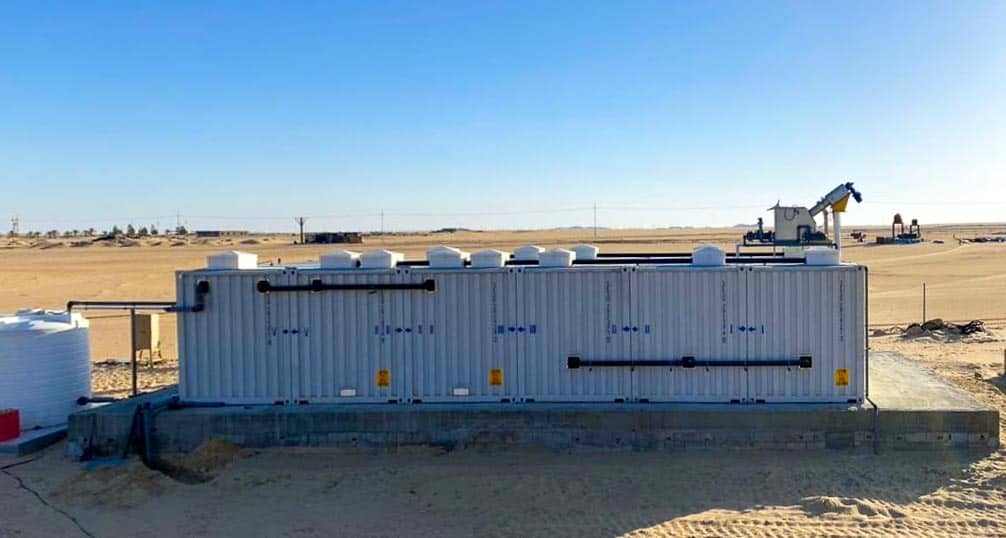

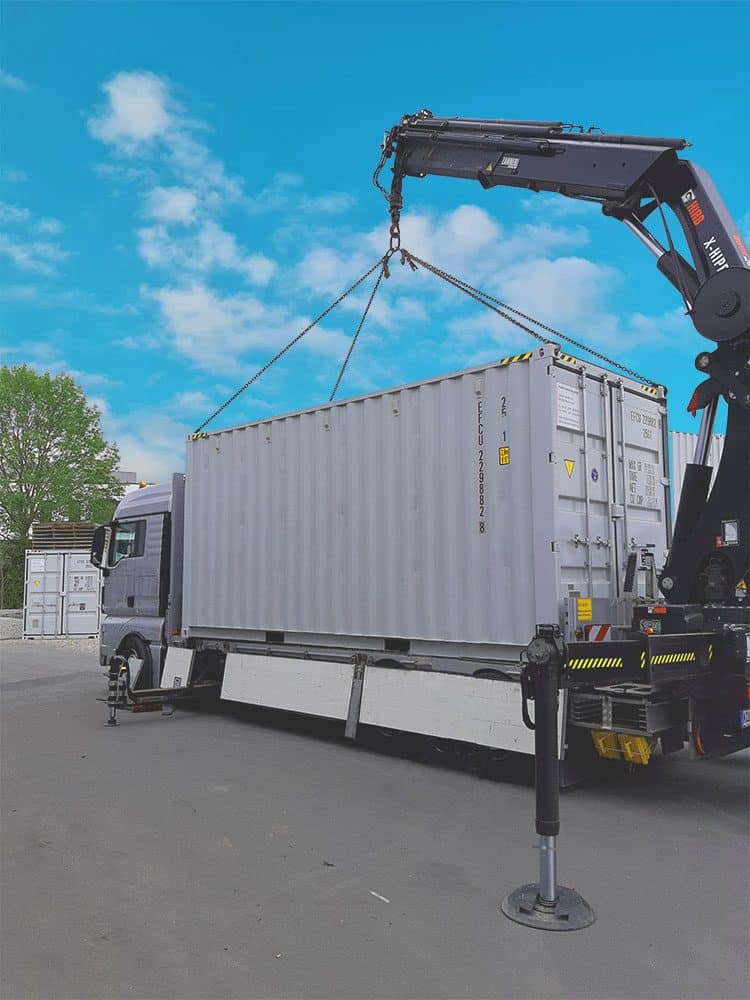

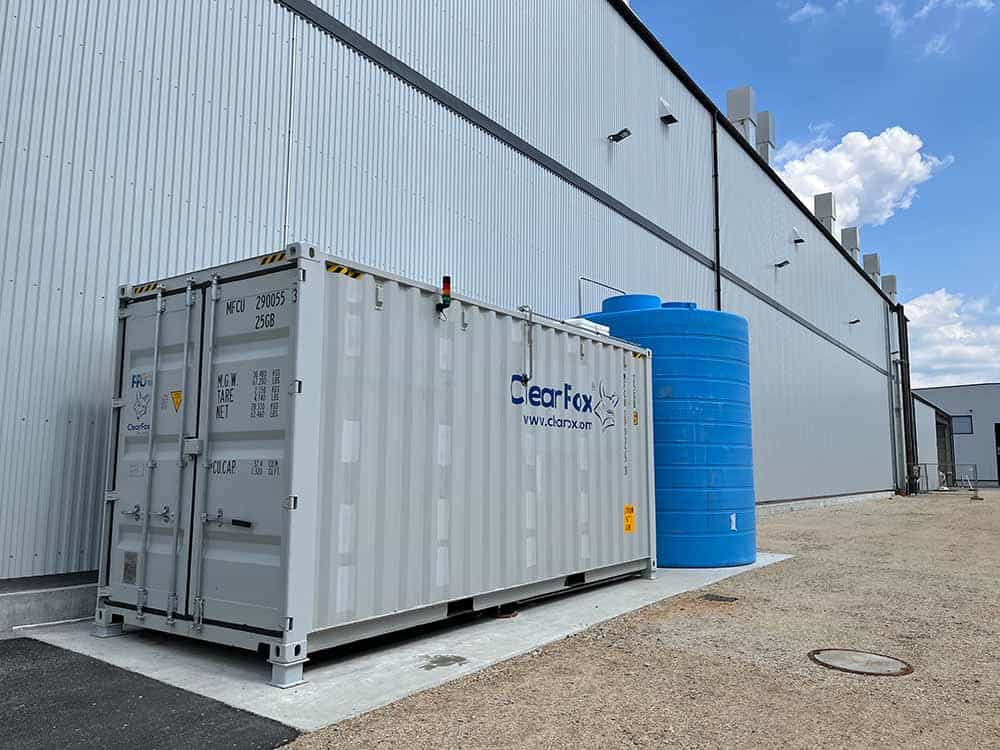

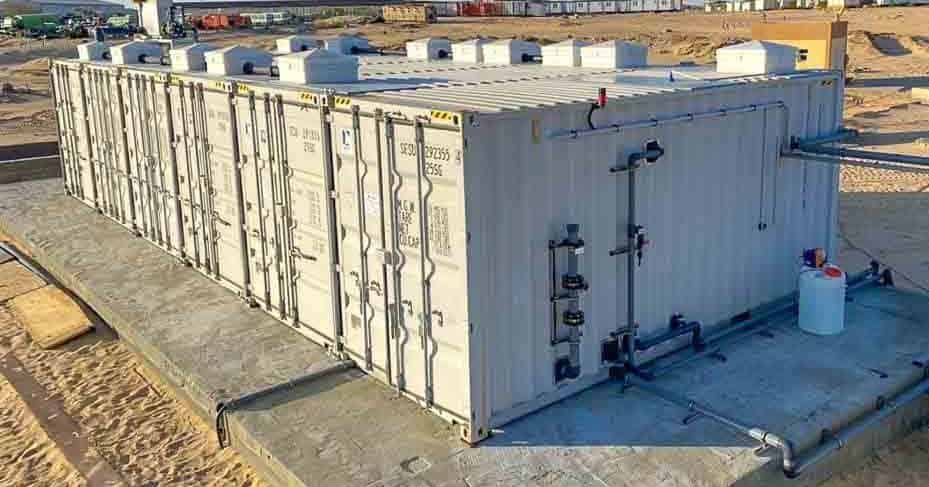

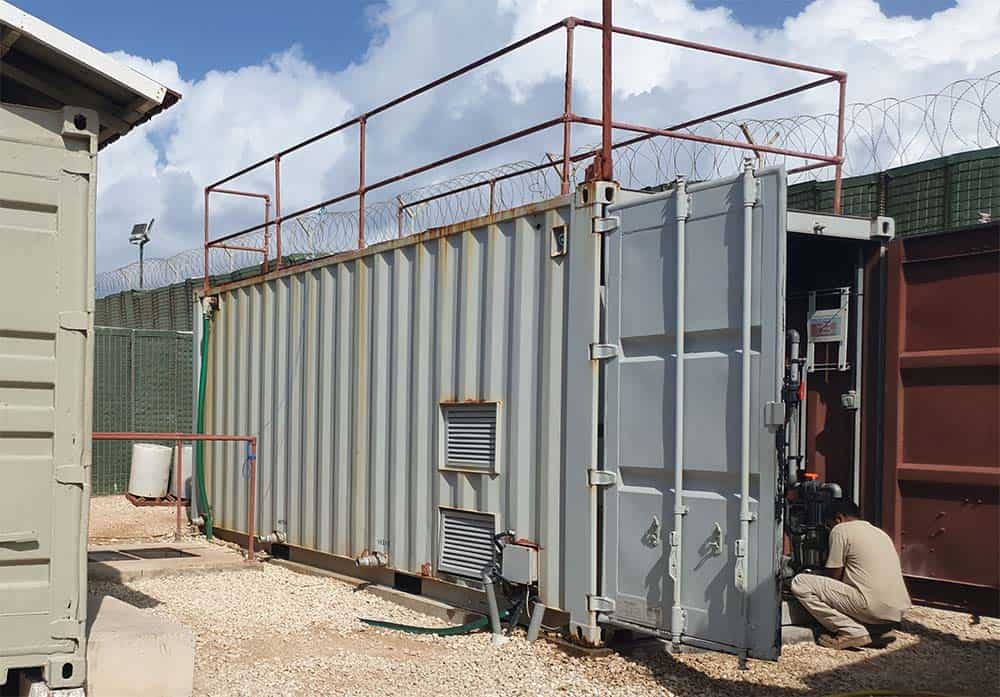

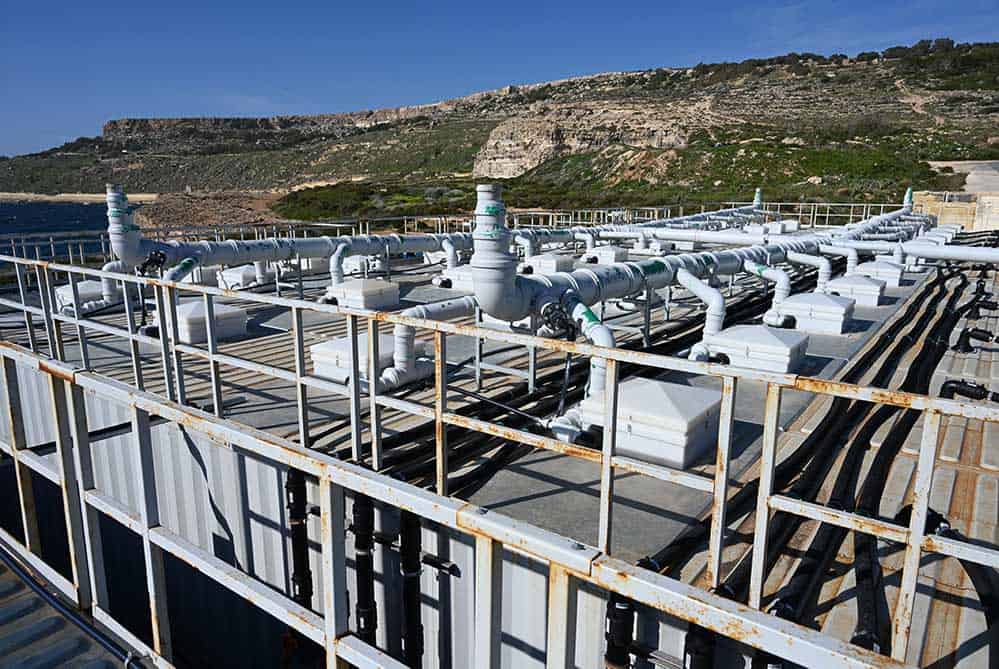

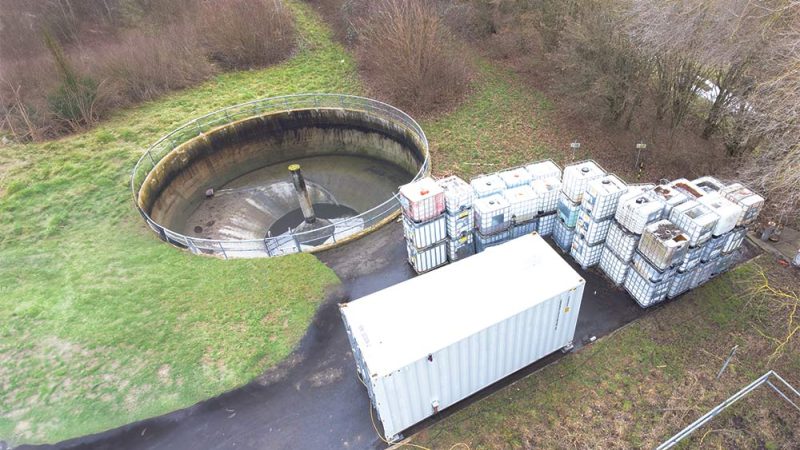

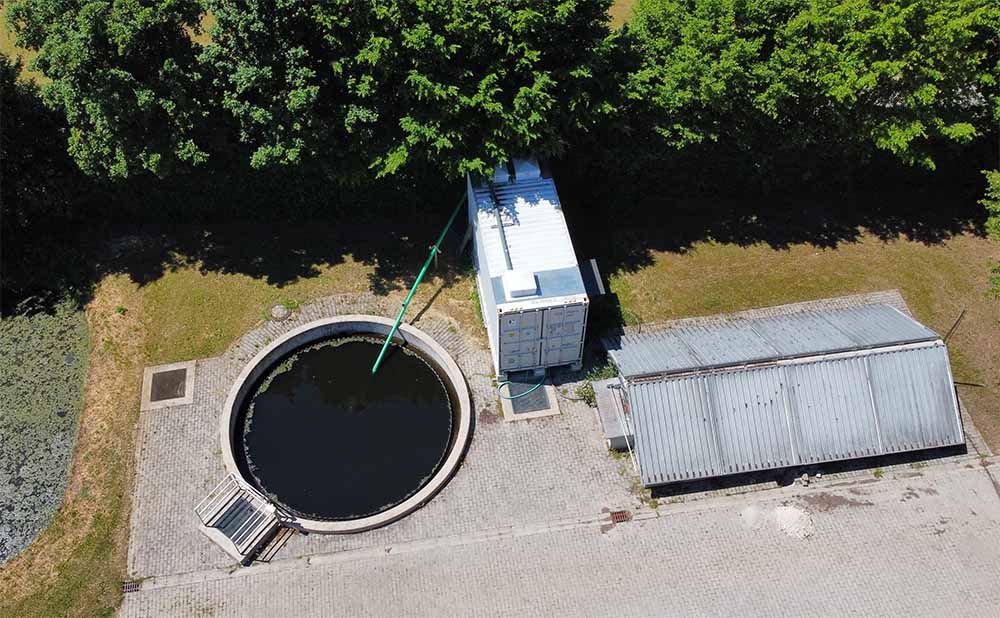

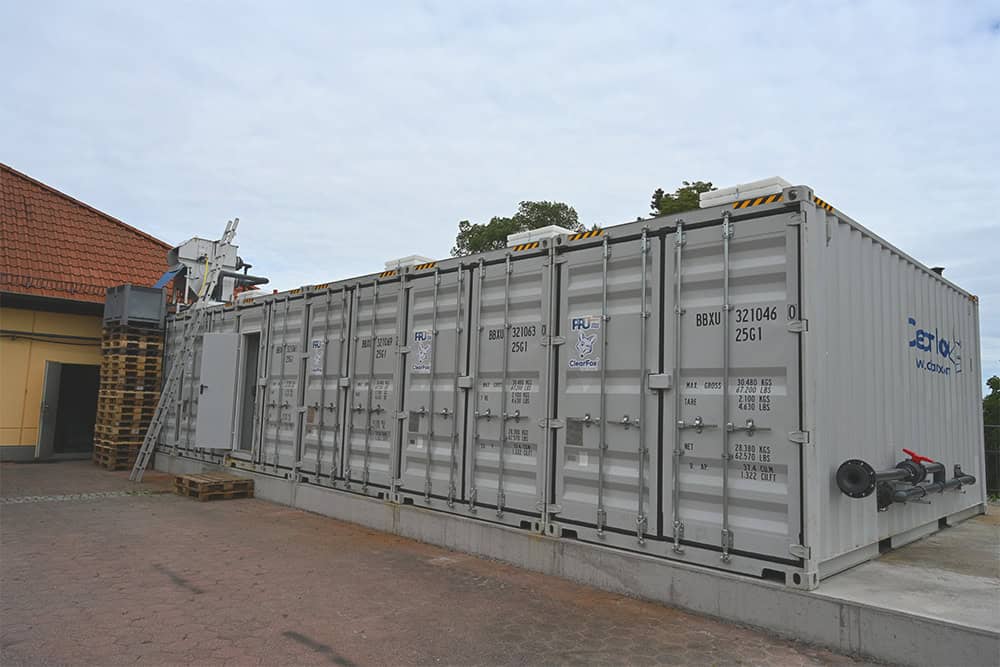

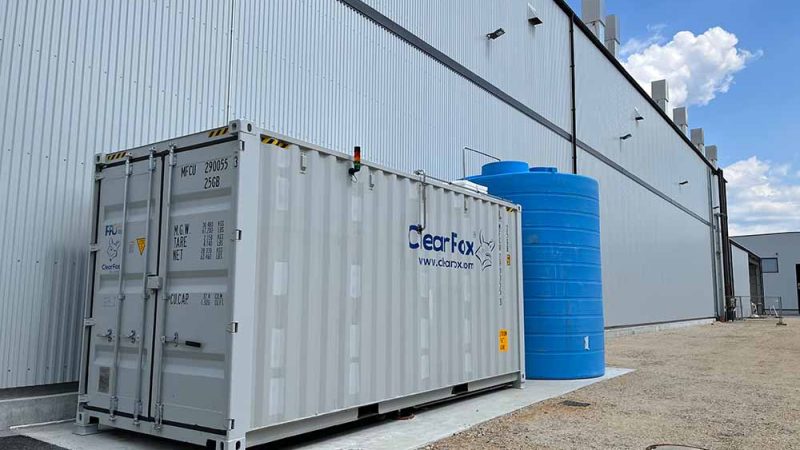

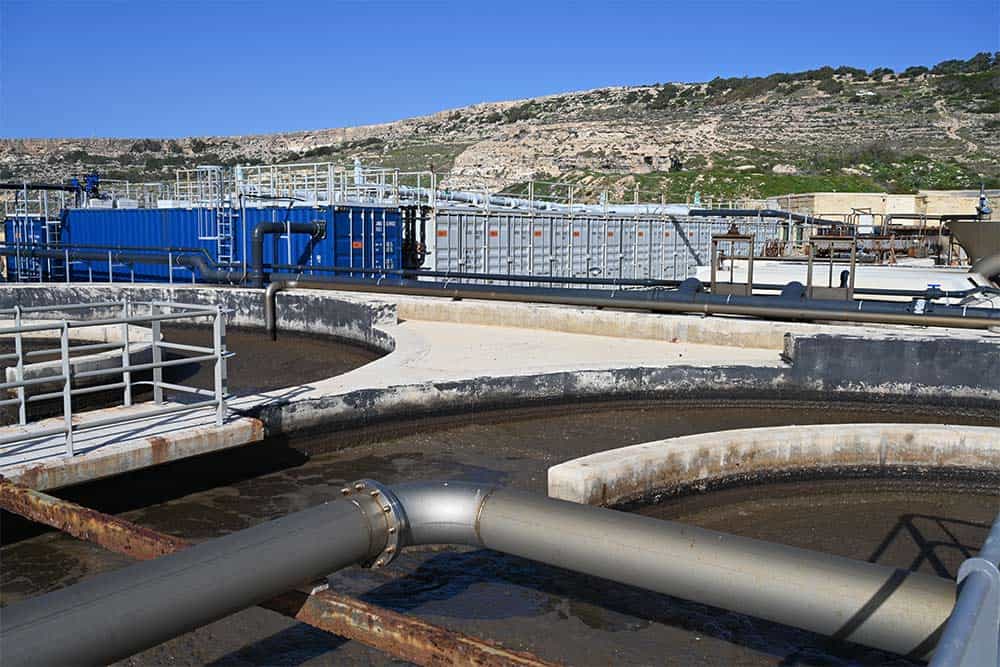

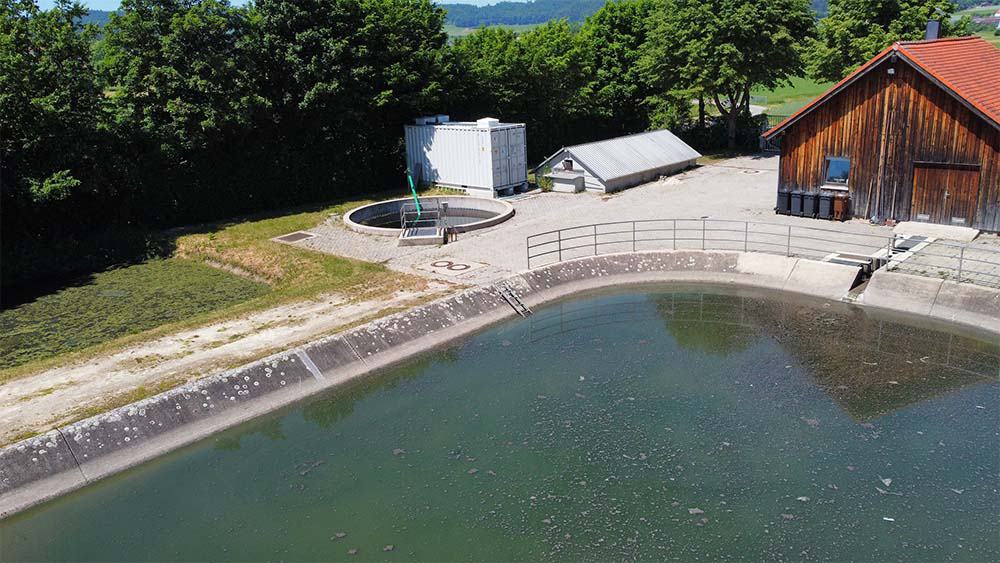

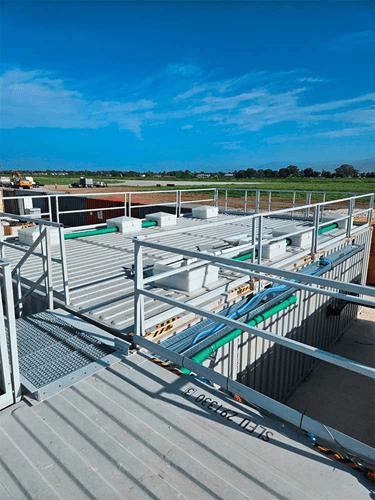

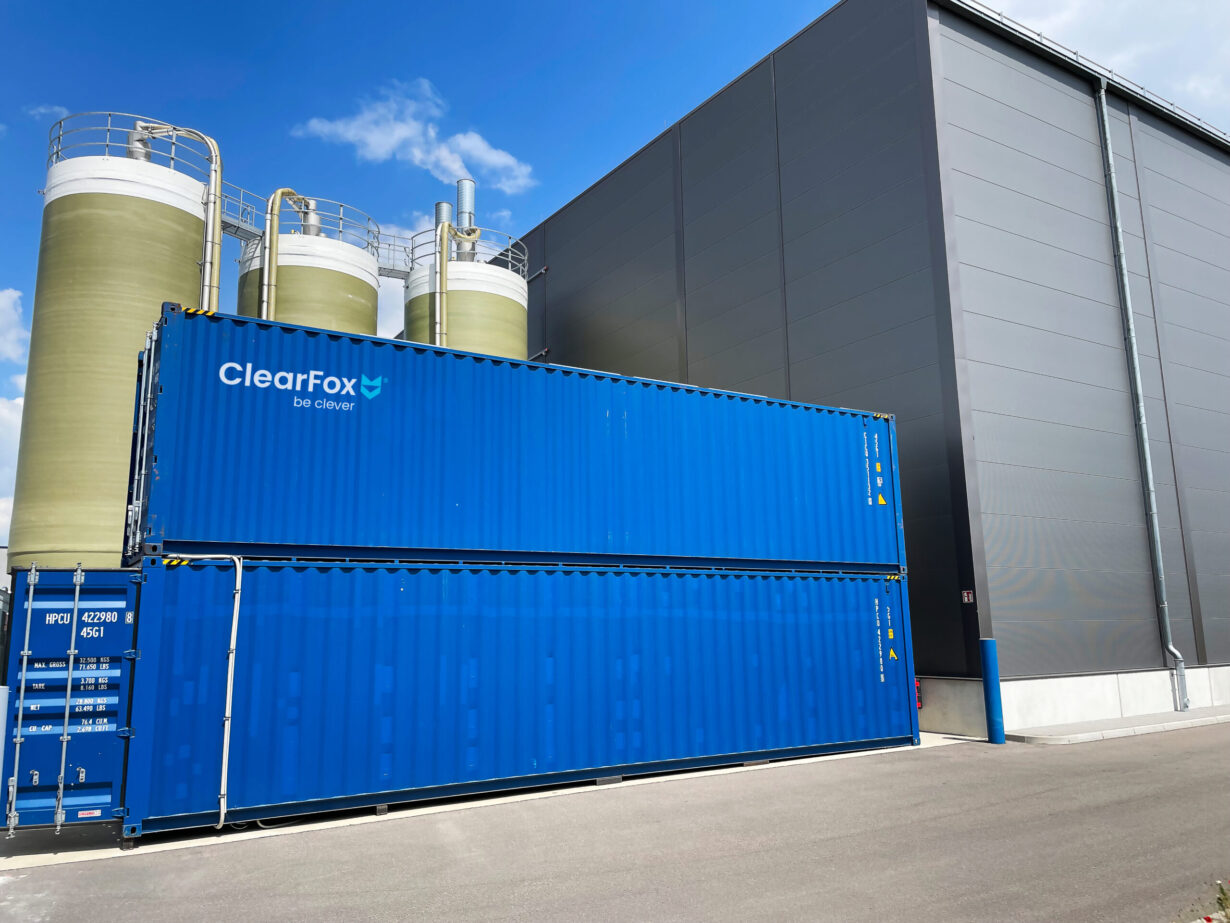

Containerized C-units: compact systems with primary treatment, biological stage and secondary clarification all housed within a 20 or 40 ft. shipping container. These systems are pre-engineered and provide a reliable and low-maintenance solution, manufactured according to the “plug and play” principle. From inquiry to start-up in record time – our modular systems make it possible.

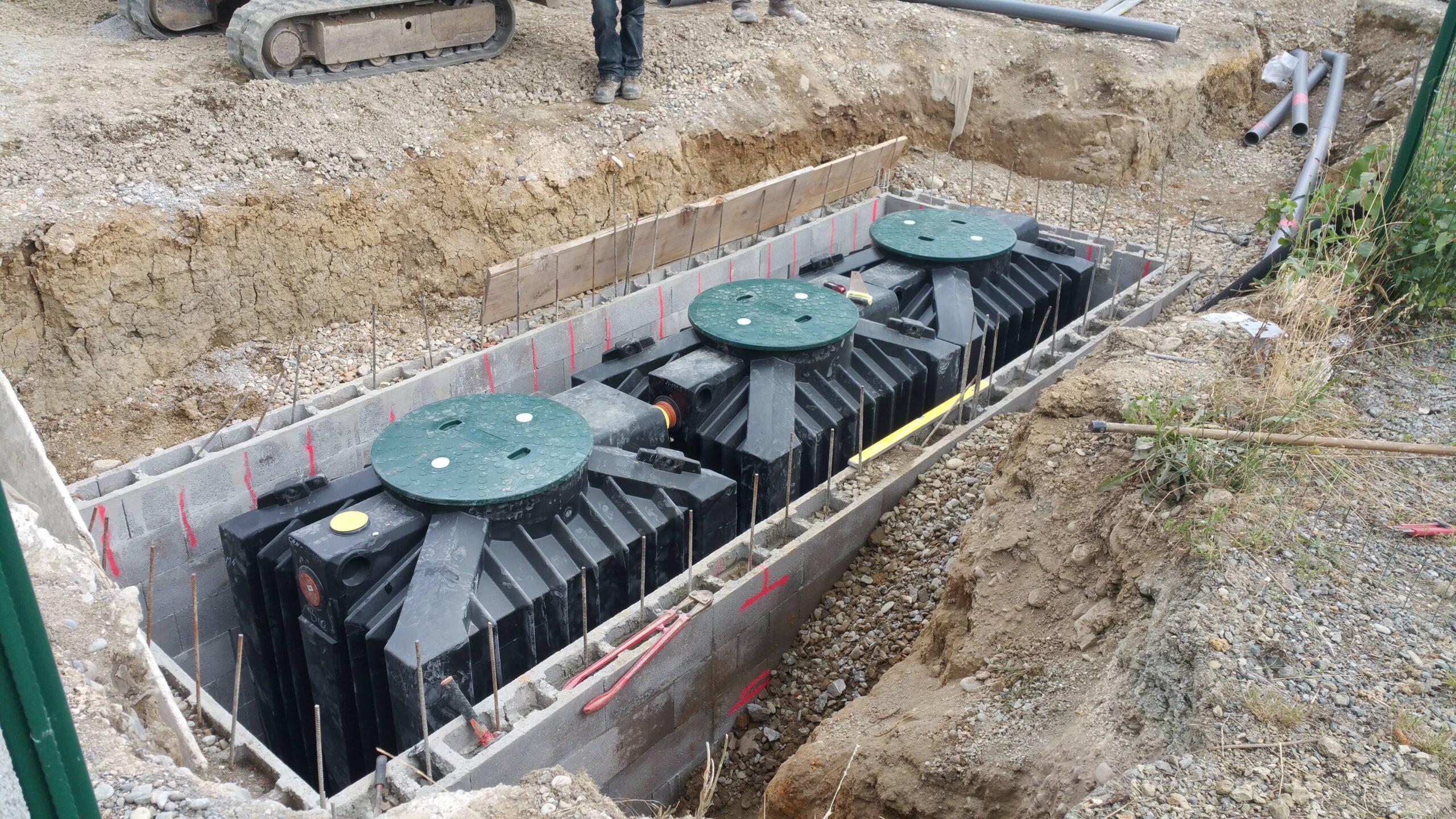

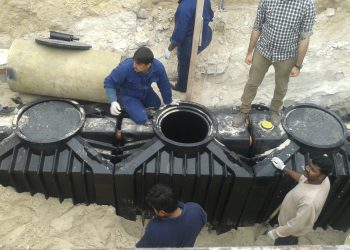

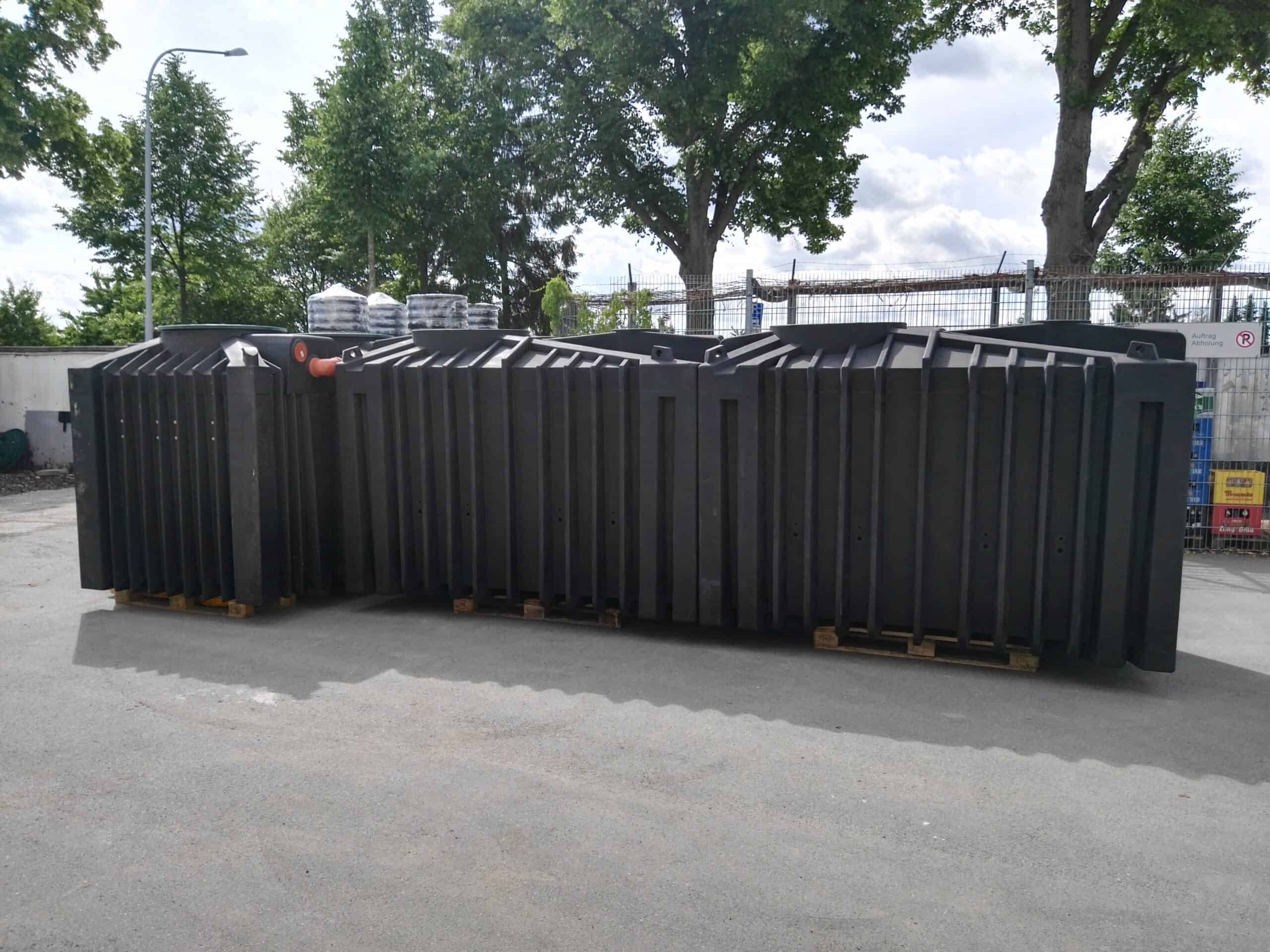

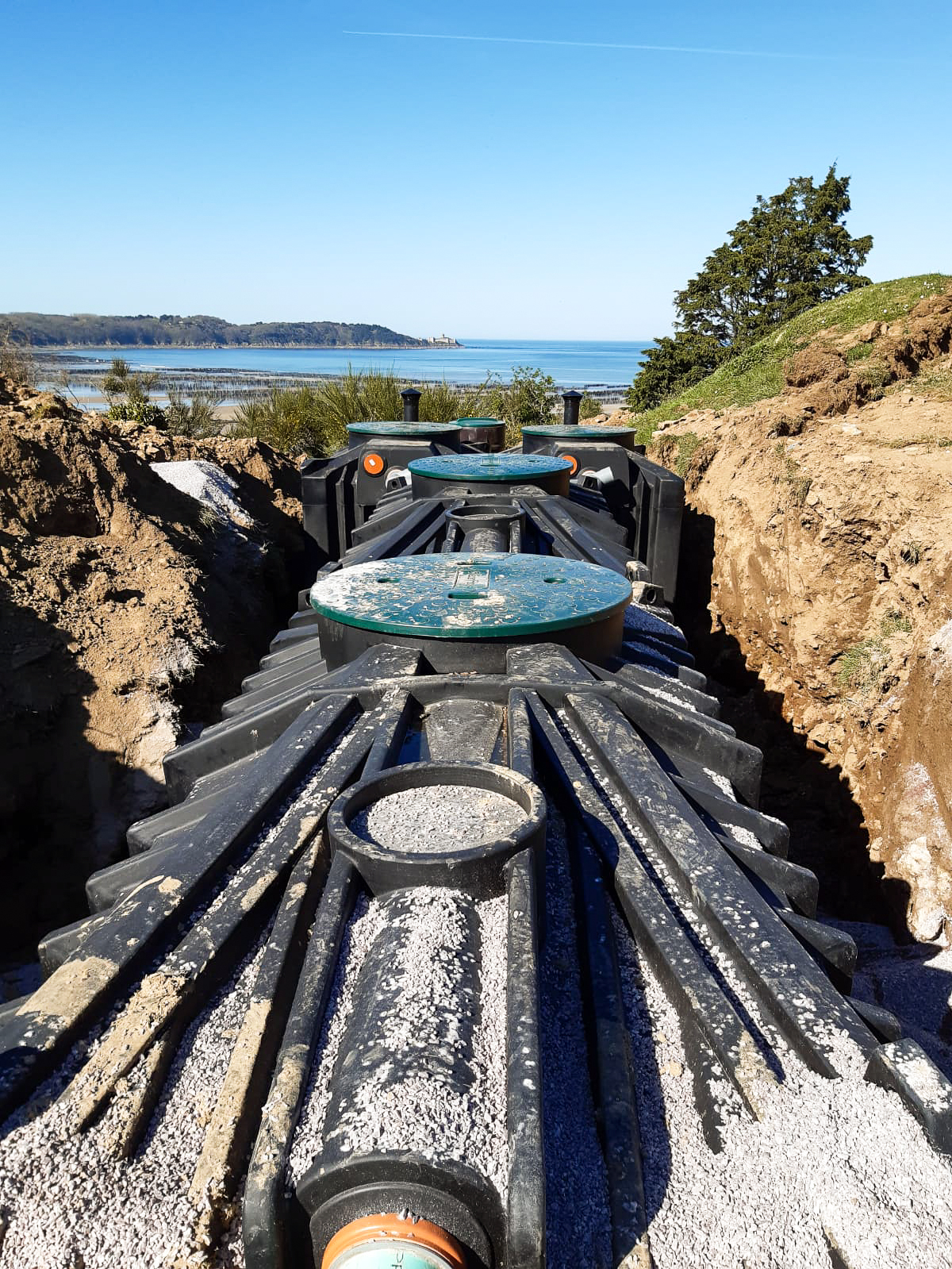

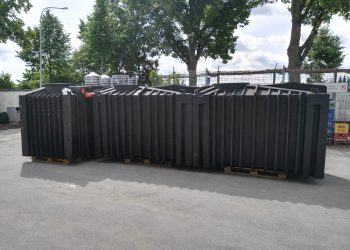

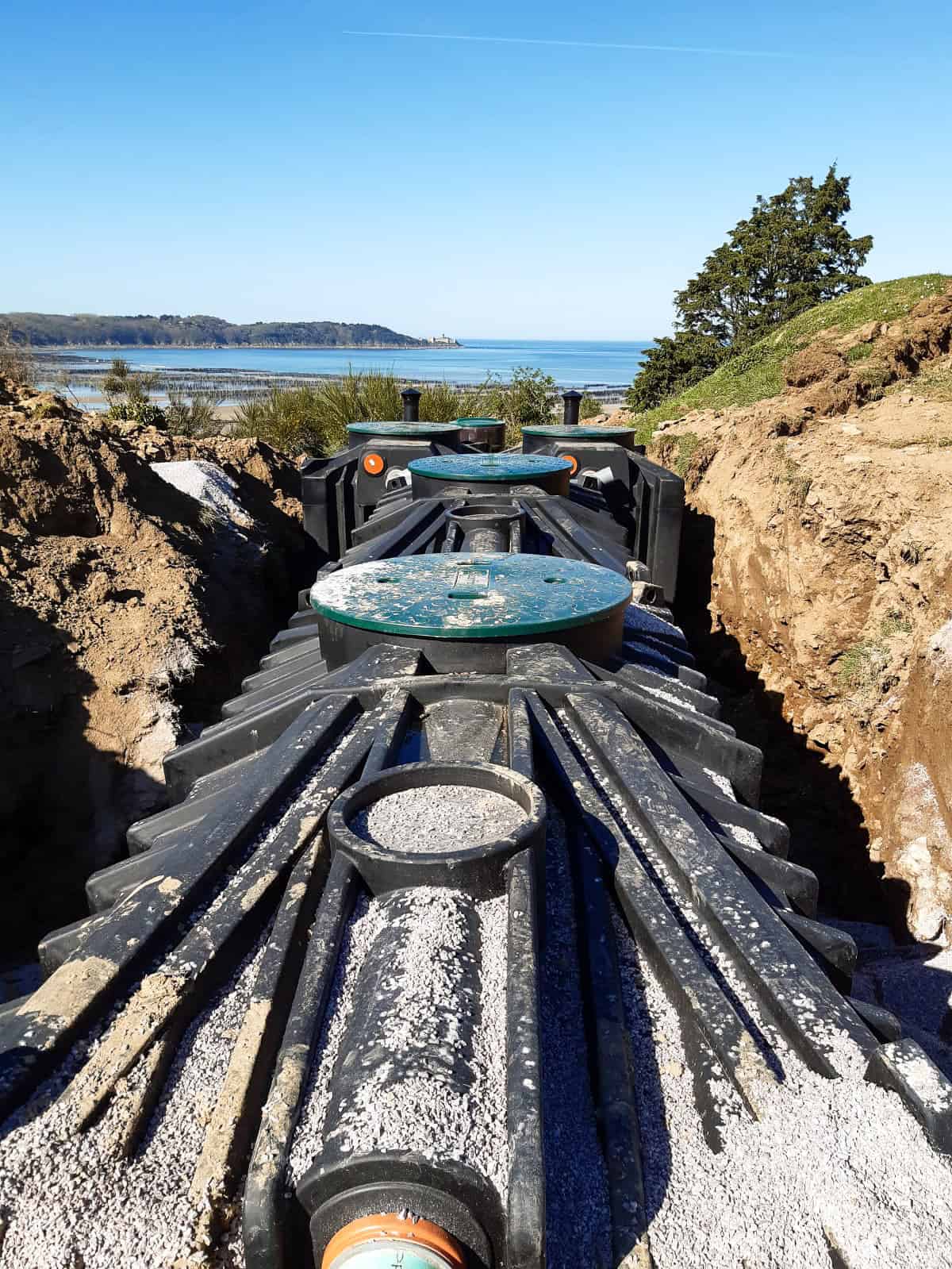

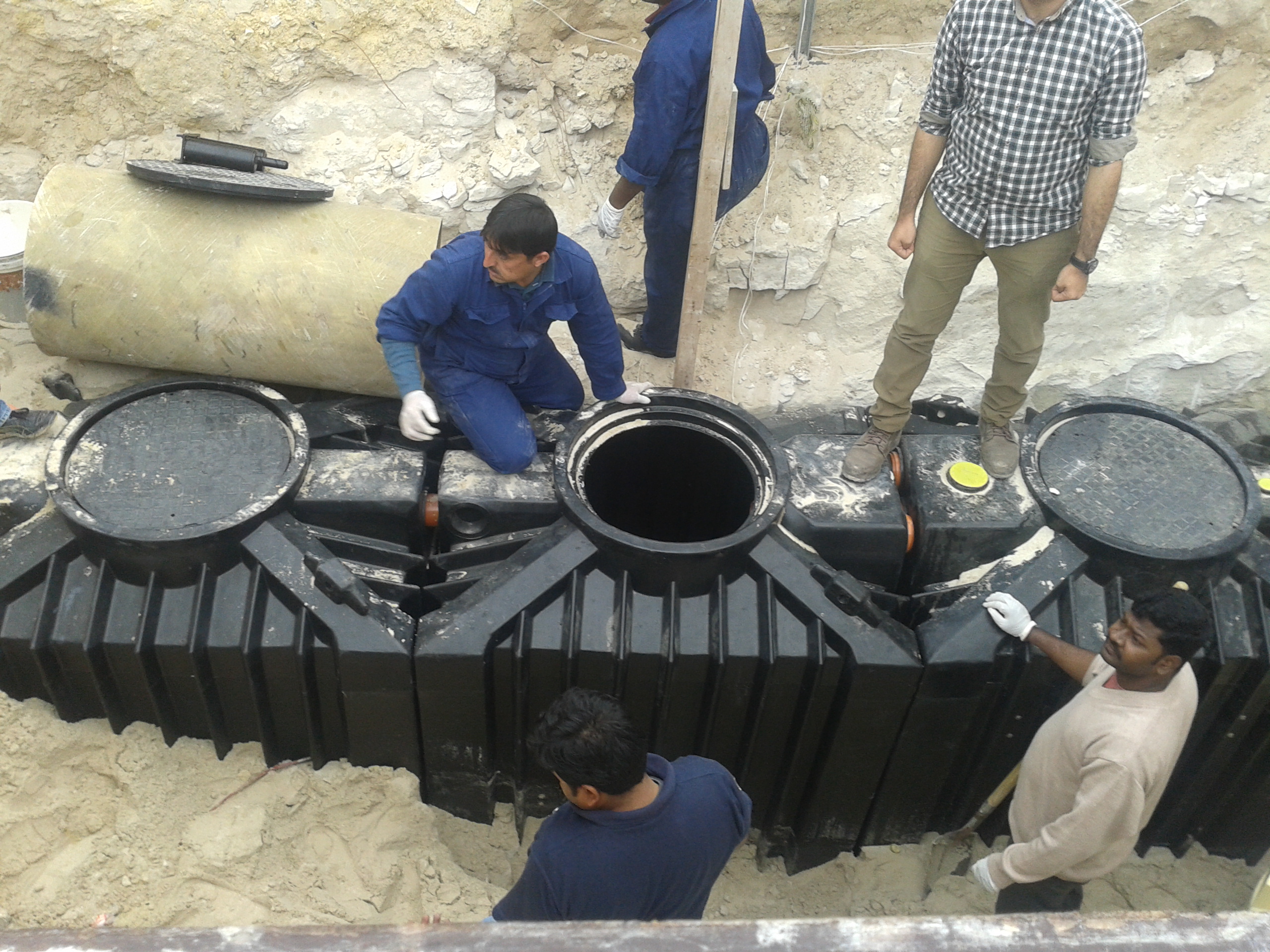

AP FBBR tanks: These packaged plants are delivered in compact HDPE tanks designed for underground or above-ground (with steel reinforcement) installation. Each system is fully preassambled and includes primary treatment (either from ClearFox or existing from client), biological stage and secondary clarification in multiple tanks for maximum flexibility. The robust and lightweight HDPE design ensures easy transport to the sites location.
How It Works
-

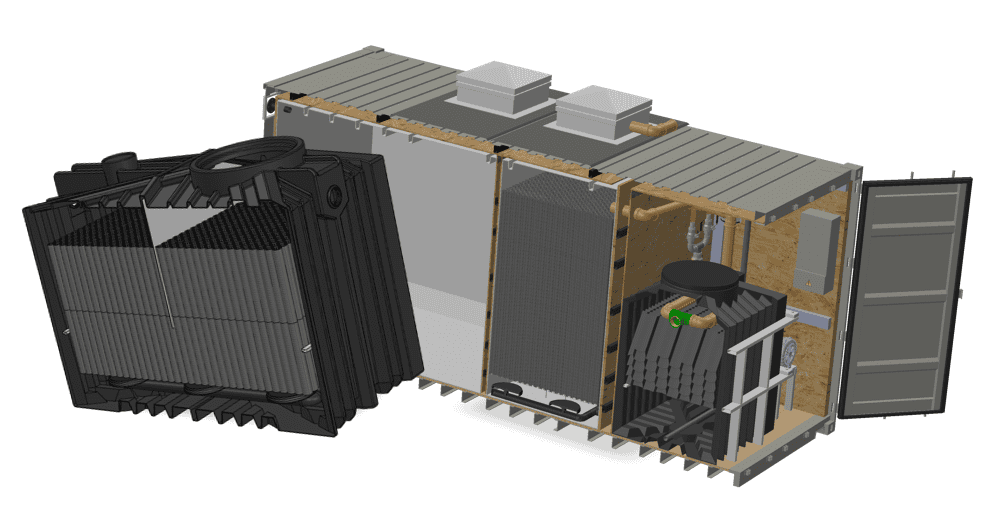

Example for the C30 (see above)
Primary Treatment
Incoming wastewater first enters the 13 m³ buffer tank. This is a high quality seamless rotationally molded plastic tank that fits perfectly into the container and will last for more than 25 years. The buffer tank acts as a temporary storage unit to maintain consistent flow rates for the system -
Biological Treatment
The water then flows into the biological reactor, which contains fixed-bed media providing a large surface area for microorganisms to attach and grow. An aeration system at the bottom supplies oxygen to the microorganisms, enabling efficient biological degradation of organic matter. -
Secondary Treatment
The treated water passes through the lamella clarifier. Inclined plates increase the settling surface area, which allows for highly efficient sedimentation in a compact footprint, allowing the solids to settle.
Advantages
- Installation Versatility
Our packaged treatment plants are designed for maximum flexibility in installation. Depending on site request and volume, they can be supplied in compact plastik tanks for underground installation or in robust containerised units for above ground installation. This adaptability ensures the system can be seamlessly integrated into both new builds and retrofit projects in virtually any location.
- Low operating costs
The efficient operation of ClearFox® systems does not require specialized personnel. No weekly adjustments, no complex measurement or control technology: The fixed bed reactor ensures biological stability autonomously. The system is designed for minimal maintenance effort.
Combined with low energy consumption, this results in low and predictable operating costs (OPEX) throughout the entire lifetime of the system.
- Robust Technology
One of the key advantages of the ClearFox® fixed bed technology lies in its exceptional process stability. Unlike conventional biological treatment systems, the bio-film in the submerged fixed bed reactor adapts automatically to varying loads. The ClearFox® FBR continues to operate reliably even with fluctuations in influent values.
- Made in Germany
Our systems are engineered and built in Germany under high quality standards with high quality materials. ClearFox is ISO 9001 (quality management) and ISO 14001 (environmental management) certified. This means maximum operational safety, predictable maintenance schedules and the confidence that your investment will provide reliable performance for decades.
Videos
Specifications
| Module type | C-5 | C-15 | C-30 | C-50 |
|---|---|---|---|---|
| Flow rate | 5 m³/d | 15 m³/d | 30 m³/d | 50 m³/d |
| Flow rate Q10 | 0,5 m³/h | 1,5 m³/h | 3,00 m³/h | 5,00 m³/h |
| Flow rate Q20 into fixed bed tank | 0,25 m³/h | 0,75 m³/h | 1,50 m³/h | 2,5 m³/h |
| Load BOD5 | 2 kg/d | 6 kg/d | 12 kg/d | 20 kg/d |
| Load COD | 4 kg/d | 12 kg/d | 24 kg/d | 40 kg/d |
| Measures (l/w/h) in m | 6,1/2,5/2,8 | 6,1/2,5/2,8 | 6,1/2,5/2,8 | 6,1/2,5/2,8 |
| Machine house (l/w/h) in m | Inside container | Inside container | Outdoor cabinet (l/w/h) 210x115x215 | Inside container |
| Weight (transport/operation) | 7,0/20 to | 7,0/23,0 to | 7,0/26,0 to | 7,0/23,0 to |
| Power connected | 0,35 kW | 0,5 kW | 1,1 kW | 1,75 kW |
| Power consumption/d ~ | 5,6 kW/d (0,35 kW x 16 h/d) | 8 kW/d | 17,6 kW/d | 28 kW/d |
| Buffer | included | included | included | not included |
| Sludge storage for | 80 d | 80 d | 30 d | not included |
| Module type | C-5 | C-15 | C-30 | C-50 |
|---|---|---|---|---|
| Flow rate | 5 m³/d | 15 m³/d | 30 m³/d | 50 m³/d |
| Flow rate Q10 | 0,5 m³/h | 1,5 m³/h | 3,00 m³/h | 5,00 m³/h |
| Flow rate Q20 into fixed bed tank | 0,25 m³/h | 0,75 m³/h | 1,50 m³/h | 2,5 m³/h |
| Load BOD5 | 2 kg/d | 6 kg/d | 12 kg/d | 20 kg/d |
| Load COD | 4 kg/d | 12 kg/d | 24 kg/d | 40 kg/d |
| Measures (l/w/h) in m | 6,1/2,5/2,8 | 6,1/2,5/2,8 | 6,1/2,5/2,8 | 6,1/2,5/2,8 |
| Machine house (l/w/h) in m | Inside container | Inside container | Outdoor cabinet (l/w/h) 210x115x215 | Inside container |
| Weight (transport/operation) | 7,0/20 to | 7,0/23,0 to | 7,0/26,0 to | 7,0/23,0 to |
| Power connected | 0,35 kW | 0,5 kW | 1,1 kW | 1,75 kW |
| Power consumption/d ~ | 5,6 kW/d (0,35 kW x 16 h/d) | 8 kW/d | 17,6 kW/d | 28 kW/d |
| Buffer | included | included | included | not included |
| Sludge storage for | 80 d | 80 d | 30 d | not included |
| Module type | C-5 | C-15 | C-30 | C-50 |
|---|---|---|---|---|
| Flow rate | 5 m³/d | 15 m³/d | 30 m³/d | 50 m³/d |
| Flow rate Q10 | 0,5 m³/h | 1,5 m³/h | 3,00 m³/h | 5,00 m³/h |
| Flow rate Q20 into fixed bed tank | 0,25 m³/h | 0,75 m³/h | 1,50 m³/h | 2,5 m³/h |
| Load BOD5 | 2 kg/d | 6 kg/d | 12 kg/d | 20 kg/d |
| Load COD | 4 kg/d | 12 kg/d | 24 kg/d | 40 kg/d |
| Measures (l/w/h) in m | 6,1/2,5/2,8 | 6,1/2,5/2,8 | 6,1/2,5/2,8 | 6,1/2,5/2,8 |
| Machine house (l/w/h) in m | Inside container | Inside container | Outdoor cabinet (l/w/h) 210x115x215 | Inside container |
| Weight (transport/operation) | 7,0/20 to | 7,0/23,0 to | 7,0/26,0 to | 7,0/23,0 to |
| Power connected | 0,35 kW | 0,5 kW | 1,1 kW | 1,75 kW |
| Power consumption/d ~ | 5,6 kW/d (0,35 kW x 16 h/d) | 8 kW/d | 17,6 kW/d | 28 kW/d |
| Buffer | included | included | included | not included |
| Sludge storage for | 80 d | 80 d | 30 d | not included |
| Module type | C-5 | C-15 | C-30 | C-50 |
|---|---|---|---|---|
| Flow rate | 5 m³/d | 15 m³/d | 30 m³/d | 50 m³/d |
| Flow rate Q10 | 0,5 m³/h | 1,5 m³/h | 3,00 m³/h | 5,00 m³/h |
| Flow rate Q20 into fixed bed tank | 0,25 m³/h | 0,75 m³/h | 1,50 m³/h | 2,5 m³/h |
| Load BOD5 | 2 kg/d | 6 kg/d | 12 kg/d | 20 kg/d |
| Load COD | 4 kg/d | 12 kg/d | 24 kg/d | 40 kg/d |
| Measures (l/w/h) in m | 6,1/2,5/2,8 | 6,1/2,5/2,8 | 6,1/2,5/2,8 | 6,1/2,5/2,8 |
| Machine house (l/w/h) in m | Inside container | Inside container | Outdoor cabinet (l/w/h) 210x115x215 | Inside container |
| Weight (transport/operation) | 7,0/20 to | 7,0/23,0 to | 7,0/26,0 to | 7,0/23,0 to |
| Power connected | 0,35 kW | 0,5 kW | 1,1 kW | 1,75 kW |
| Power consumption/d ~ | 5,6 kW/d (0,35 kW x 16 h/d) | 8 kW/d | 17,6 kW/d | 28 kW/d |
| Buffer | included | included | included | not included |
| Sludge storage for | 80 d | 80 d | 30 d | not included |
Download C-Systems
Download AP-FBR Systems
Reference Projects
FAQs
1. What is a ClearFox® Packaged Plant?
A ClearFox® Packaged sewage plant is a wastewater treatment system which is pre-assembled, modular, housed within ISO shipping containers or in HDPE tanks for underground installation. All essential treatment stages, such as primary treatment, biological treatment and clarification are already integrated.
2. What is the difference between a FBBR Packaged Sewage System and Containerized Systems from ClearFox?
They are overlapping. Our packaged treatment systems include HDPE tanks and our containerized C-series with fixed-bed technology. Our containerized solutions include all our systems that are installed in a container (including C-series):
- ClearFox® DAF
- ClearFox® Lamella Clarifier
- ClearFox® FBBR Container
- ClearFox® C-series
- ClearFox® DiOx
3. What applications are suitable for packaged treatment systems?
These systems are ideal for all kinds of municipal and industrial wastwater treatment:
Oil and gas drilling sites
Construction sites
Worker camps
Military camps
Mining camps
Temporary municipal and industrial wastewater treatment
Refugee camps
Port wastewater treatment
Hotels
Festival sites
Dairies
Sugar refineries
Breweries
Wood drying plants
Pharmaceutical industry
Pond treatment plant upgrades
and much more…!
4. What are the advantages of ClearFox® Packaged FBBR systems?
Key benefits include:
- Market-leading technology with strict environmental and quality standards
- Single-supplier provision of all necessary equipment
- Manufactured in Bavaria, Germany, ensuring high-quality standards
- Suitability for any climate zone
- Ease of transportation worldwide
5. Can the system be customized for specific wastewater treatment needs?
6. Is leasing available for these systems?
ClearFox® offers leasing services for short, medium, and long-term projects. This provides readily available (containerized) modular wastewater treatment plants customized to specific project requirements, allowing for a low-risk, cost-effective solution without large capital investment.
