Sewage treatment plant for municipal wastewater

ClearFox® SBR system expands treatment plant for municipal wastewater in Upper Franconia

Project Details

Size
500 m³/day
Location
Upper Franconia, Germany
Completed
2017

Project Delivery

Features
Optimisation of the aeration system through ClearFox® SBR system

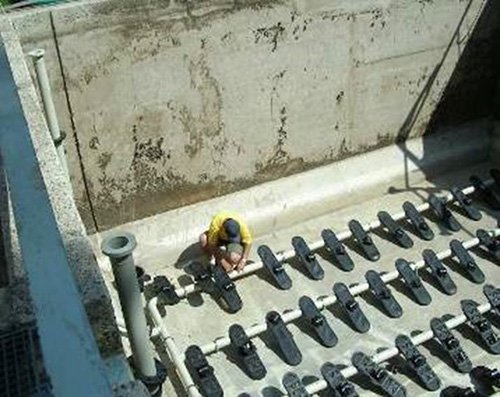

Installation in existing tanks
Treatment Modules

Project Results

Before
After
COD
1900 mg/l
200 mg/l
BOD
900 mg/l
40 mg/l

Discussion

Situation

Municipal wastewater comes from two sources: On the one hand, households feed the municipal wastewater treatment plant, and on the other hand, companies produce wastewater that is not allowed to flow into the environment without treatment. Households mainly produce hygienic wastewater. The dissolved substances are mostly organic and can be easily degraded. Wastewater from companies can contain different substances, depending on the core business. For it to be allowed to flow into the sewage treatment plant as municipal wastewater, a wastewater analysis is indispensable in advance.

A total of nine districts supply municipal wastewater to the customer’s wastewater treatment plant. This treats about 500 m³/day. The responsible wastewater association was not satisfied with the treatment performance on the one hand and the energy efficiency on the other hand. Therefore, it commissioned the ClearFox® team to refurbish the plant. The focus was to be on biological wastewater treatment.

Problem

The ClearFox® team faced three challenges with this project: The first challenge was timely implementation. Since municipal wastewater flows into a public body of water after treatment, environmental protection was a crucial factor. Second, the region of Upper Franconia is strongly characterised by agriculture. Therefore, municipal wastewater is also heavily polluted with nitrate. The third challenge was the already existing tanks in which the ClearFox® engineers had to install the treatment system.

Solution

The customer opted for an SBR system with a two-line aeration system. Over a certain interval – specially designed for municipal wastewater – the system supplies the microorganisms in the wastewater with oxygen. This allows them to grow and treat the wastewater. The treated wastewater contains a COD of 200 mg/l, a BOD of 40 mg/l and a nitrogen content of 10 mg/l. This makes the wastewater suitable for direct discharge into the environment.

The ClearFox® team first visited the municipal wastewater treatment plant on site. The employees took over the complete planning of the project, the installation in the tanks, the commissioning as well as the instruction of the responsible persons.

FAQ

The SBR system works at fixed intervals. The wastewater is aerated, sedimented and drained one after the other. Microorganisms in the tank break down organic substances and reduce pollutants such as nitrogen. This enables flexible and efficient treatment that can be adapted to the respective water quality.

Yes, the SBR system is scalable and can be adapted to different flow rates. Whether for smaller municipal plants or larger industrial applications - we develop tailor-made solutions for the respective requirements.

SBR systems are suitable for both municipal wastewater and industrial wastewater. A prerequisite is a prior analysis of the wastewater composition, especially for industrial wastewater containing special chemical substances.

Yes, we can plan our systems so that existing tanks or other infrastructure can continue to be used. This not only saves construction costs, but also shortens the project duration.

An optimally operated SBR system achieves very low residual values for COD, BOD and nitrogen. In our project, a COD of 200 mg/l, a BOD of 40 mg/l and a nitrogen content of 10 mg/l were achieved, which allows direct discharge into the environment.
