Housing Development Wastewater Treatment

Sector Overview
Here we explain the characteristics of residential wastewater, available treatment technologies, and key selection criteria to help developers, planners, and engineers choose the most effective treatment approach for their specific residential projects.
Here we explain the characteristics of residential wastewater, available treatment technologies, and key selection criteria to help developers, planners, and engineers choose the most effective treatment approach for their specific residential projects.

Housing development and sub-division wastewater treatment presents unique challenges requiring specialized solutions when there is no access to a public sewer. Solutions are needed that can handle variable residential flows, and loads caused by fluctuating occupancy patterns.

Contents

Understanding Housing Development Wastewater: Characteristics and Sources

Wastewater Sources in Residential Developments

Housing development wastewater originates from multiple sources throughout residential properties, each contributing distinct characteristics and pollutant loads. The primary sources include wastewater from toilets, bathroom sinks, showers and bathtubs, kitchen sinks and dishwashers, washing machines, and general household cleaning activities. Wastewater can be split into black water [toilet water] and greywater [shower, washing machine, etc]. Typically both are collected and treated together.

Throughout a typical weekday, wastewater from residential applications flows at variable rates. Peak flow rates typically occur in the mornings, late afternoons, and evenings when residents leave or return from work and school. The concentration of pollutants such as ammonia and COD in residential wastewater can be quite high, often resulting from increased use of disinfectants and cleaning products, along with many houses not having grease traps installed.

Technical Characteristics by Development Type

The composition and loading of housing development wastewater varies considerably depending on the type and scale of residential development. Residential developments, subdivisions, and apartment buildings may require on-site wastewater treatment if there is no access to public sewerage, or local regulations may require pre-treatment prior to discharge. Large wastewater treatment plants must be designed to handle peak flows combined with periods of low flow at residential developments.

Population Equivalent and Design Loading

For design purposes, housing developments utilize population equivalent (PE) calculations that account for variable occupancy patterns. In Europe typically 1PE equates to 60g BOD and 150L/day. In the US, 1PE can equal 100gallons and 0.2lbs BOD per person. The number of people varies by location depending on the regional regulations, but typically 1.5 persons per bedroom can be used.

Flow Variations and Peak Loading

Housing development wastewater treatment systems must accommodate highly variable wastewater flows and loadings throughout the day and week. Peak flow factors for residential applications typically require systems designed to handle both surge conditions and minimum flow requirements to prevent effluent non-compliance. The variable nature of residential occupancy, including seasonal fluctuations and weekend patterns, necessitates robust treatment systems capable of maintaining performance under varying conditions.

Treatment Technologies and Approaches

Direct Connection and Public Sewer Discharge

The simplest approach for housing development wastewater management involves direct connection to municipal sewer systems where available. However, many residential developments, particularly those in rural or expanding urban areas, lack access to centralized infrastructure and require on-site treatment solutions. Even when municipal connections exist, developments may need systemsdue to the main sewer infrastructure being ta capacity.

Advanced Biological Treatment Technologies

Sequential Batch Reactor (SBR) Technology

Sequential Batch Reactor systems offer an effective solution for housing development wastewater treatment, treating wastewater in batches through four distinct phases: charging, aeration, settling, and discharge. SBR systems typically achieve BOD removal efficiency of 85 to 95 percent, with process guarantees for effluent quality of less than 10 mg/L BOD, 10 mg/L TSS, 5-8 mg/L total nitrogen, and 1-2 mg/L total phosphorus1. The SBR serves as an equalization basin when filling with wastewater, enabling the system to tolerate peak flows or peak loads in the influent, making it particularly suitable for residential applications with variable loading patterns.

Moving Bed Biofilm Reactor (MBBR) Technology

Moving Bed Biofilm Reactor technology utilizes free-floating plastic fill media for attached biofilm growth. MBBR technology proves particularly effective for residential applications with volatile water inflows, providing stability during fluctuating loading conditions typical of housing developments. The attached growth biofilm maintains treatment efficiency during varying occupancy periods.

Fixed Bed Biological Reactor (FBBR) Technology

Fixed Bed Biological Reactor technology represents the most robust and efficient solution for housing development wastewater treatment, particularly due to its ability to handle overload and underload conditions while operating automatically without chemicals or other consumables. The technology produces significantly less sludge than conventional biological treatment processes while achieving pollutant removal efficiencies up to 99%. FBBR modules can be utilized in series or parallel configurations to accommodate flow rates from 10 to 3,000 m³/day, making them suitable for developments of various sizes.

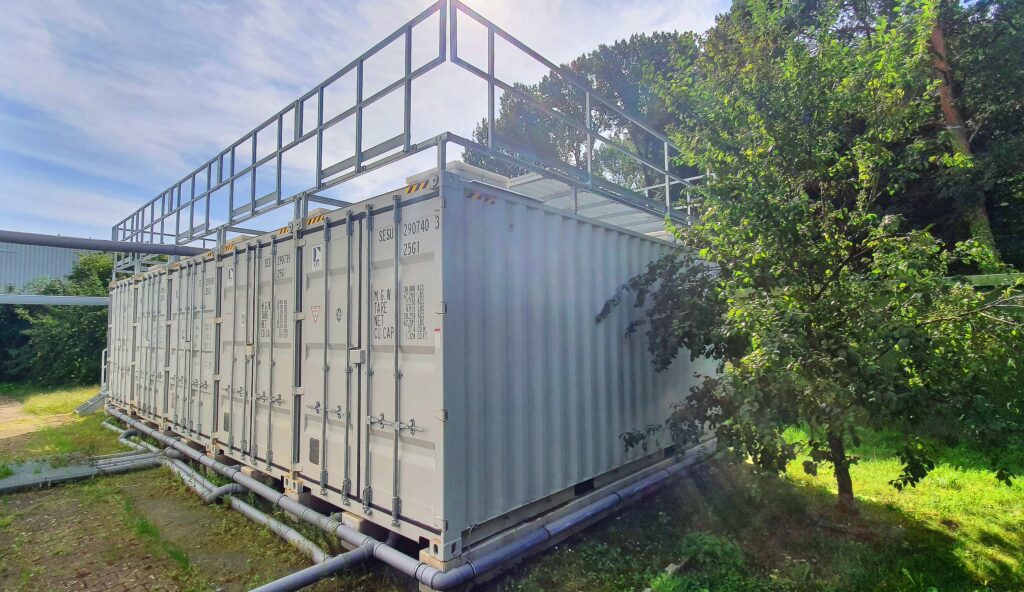

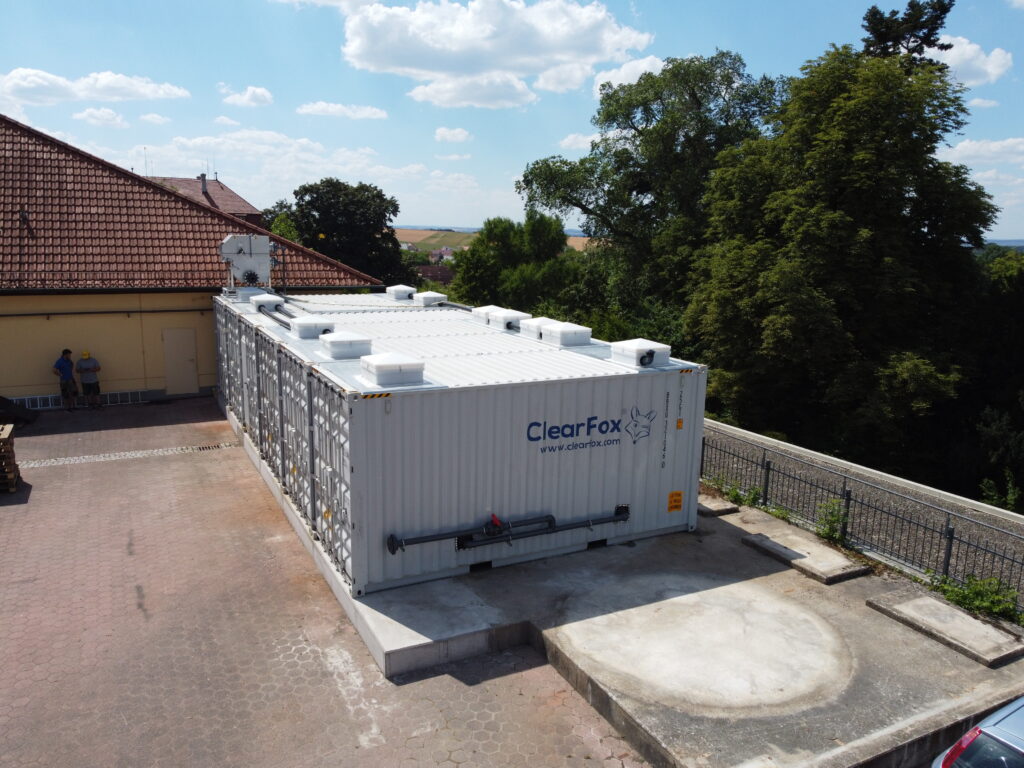

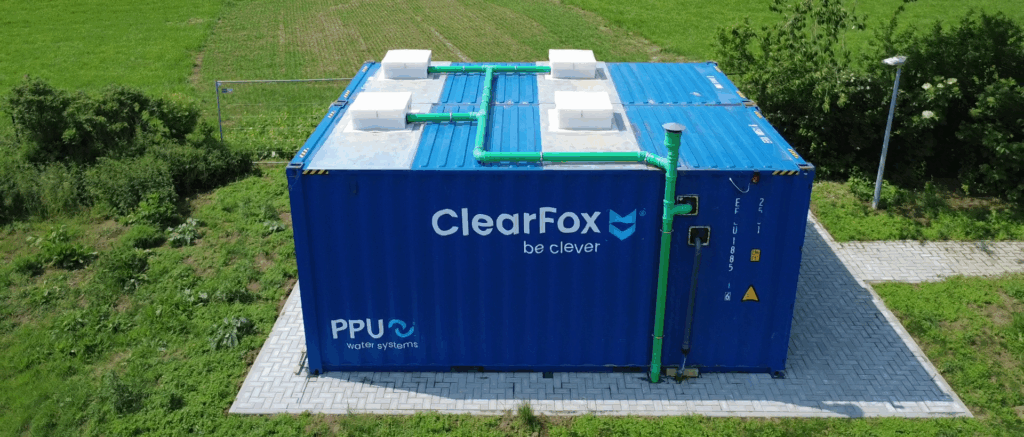

Modular and Containerized Solutions

Containerized treatment systems provide exceptional flexibility for housing developments with space constraints or phased construction requirements These plug-and-play solutions can be delivered fully assembled within modular containers, facilitating easy transportation, installation, and commissioning. Clearfox offers turnkey services to housing developers for larger-scale on-site wastewater treatment plants, enabling land that cannot be adequately serviced by water utilities to be released for development.

Water Reuse and Recovery Applications

Properly treated housing development wastewater can be transformed into a valuable resource for various non-potable applications. Greywater from showers, basins, and washing machines can be reused for gardens, flushing toilets, and in washing machines. Blackwater from toilets, dishwashers, and kitchen sinks requires treatment before reuse but can be utilized for garden irrigation.

System Selection Criteria and Considerations

Space Requirements and Development Constraints

Space availability represents a critical factor in selecting appropriate housing development wastewater treatment technology. Many developments face site restrictions that require compact treatment solutions capable of fitting within constrained areas. Underground installation options provide solutions for developments requiring minimal visual impact or surface space preservation while maintaining structural integrity.

Phased Development and Future Expansion

Housing development operations often experience growth over time, necessitating treatment systems capable of expansion to accommodate increased capacity requirements. Modular treatment technologies provide flexibility for future expansion without requiring complete system replacement. Containerized systems offer particular advantages for phased expansion, allowing developers to add treatment capacity incrementally as demand increases.

Energy Efficiency and Operating Costs

Energy consumption represents a significant operational cost for housing development wastewater treatment systems. Fixed Bed Biological Reactor technology offers lower operating costs compared to other process technologies due to efficient biological processes and minimal energy requirements. The technology requires no chemical additions, eliminating ongoing consumable costs.

Environmental Compliance and Community Standards

Housing development wastewater treatment systems must consistently meet environmental discharge standards regardless of operational variations. Regulatory compliance requires treatment systems capable of meeting stringent discharge limits for BOD, COD, suspended solids, and nutrients. Consistent performance under variable conditions ensures ongoing compliance without requiring operator intervention or system modifications.

Expert Solutions and Implementation

Reliable wastewater treatment solutions for housing developments require expertise in residential applications, including variable loading, diverse waste streams, and community-specific constraints.

Professional site assessment and consultation services evaluate specific housing development wastewater treatment requirements and recommend optimal solutions. Expert engineers from ClearFox assess site conditions, wastewater characteristics, discharge requirements, and operational constraints to develop customized treatment approaches that meet both current and future treatment needs while optimizing capital and operational costs.

Ready to Plan Your System?
